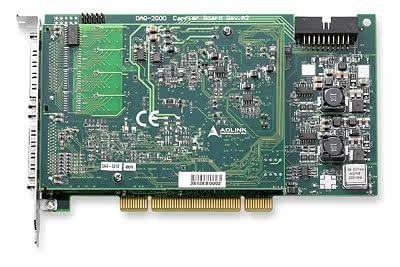

DAQ-2213

Features

• Supports a 32-bit 3.3 V or 5 V PCI bus
• Onboard 1 k-sample A/D FIFO
• Bipolar or unipolar analog input ranges
• Programmable gains: x1, x2, x4, x8
• 512-configuration channel gain queue
• Scatter-gather DMA
• 24-CH TTL digital input/output
• 2-CH 16-bit general-purpose timer/counter
• Analog and digital triggering
• Fully auto calibration
• Multiple cards synchronization through SSI (System Synchronization Interface) bus

Specifications

• Analog Input


• Resolution: 16 bits, no missing codes
• Number of channels: 16 single-ended or 8 differential (software selectable per channel)
• Channel gain queue size: 512
• Maximum sampling rate: 250 kS/s
• Programmable gain: 1, 2, 4, 8
• Bipolar input ranges:  ±10 V, ±5 V, ±2.5 V, ±1.25 V
• Unipolar input ranges: Max. :  0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V
• Offset error: ±1 mV
• Gain error: ±0.01% of FSR
• Input coupling: DC
• Overvoltage protection: Power on: Continuous ±30 V, Power off: Continuous ±15 V
• Input impedance: 1 GΩ/100 pF
• CMRR (gain = 1): 83 dB
• Settling time: 4 μs to 0.01% error
• -3 dB small signal bandwidth (gain = 1): 760 kHz
• Trigger sources: Software, external digital/analog trigger, SSI bus
• Trigger modes: Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger
• FIFO buffer size: 1 k samples
• Data transfers: Polling, scatter-gather DMA


• Digital I/O


• Number of channels: 24-CH 8255 programmable input/output
• Compatibility: 5 V/TTL
• Data transfers: Programmed I/O


• General Purpose Timer/Counter


• Number of channels: 2
• Resolution: 16 bit
• Base clock available: 40 MHz, external clock up to 10 MHz


• Auto Calibration


• Onboard reference: +5 V
• Temperature drift: ±2 ppm/˚C
• Stability: ±6 ppm/1000 Hrs


• General Specifications


• Dimensions: 175 mm x 107 mm (not including connectors)
• Connector: 68-pin VHDCI female x 2
• Operating temperature: 0 to 55˚C
• Storage temperature: -20 to 70˚C
• Humidity: 5 to 95 %, non-condensing
• Power requirements: +5 V 1.2 A typical

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• D2K-DASK for Windows
• D2K-DASK/X for Linux

Ordering Information

• DAQ-2213 - 8/16 x 16-bits 250 kS/s Low-Cost Multi-Function DAQ Card

Accessories

• Terminal Boards


• DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (cables are not included)


• Cables


• ACL-10568-1 - 68-Pin SCSI-VHDCI cable


• SSI Bus Cables (for multiple cards synchronization)


• ACL-SSI-2 - SSI Bus cable for 2 devices


• ACL-SSI-3 - SSI Bus cable for 3 devices


• ACL-SSI-4 - SSI Bus cable for 4 devices
