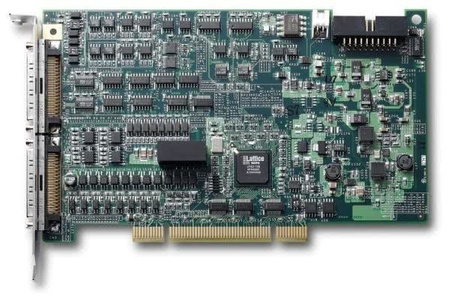

Name: PCI-6202 (End of Life)
Brand: Adlink Technology

Karta katalogowa Pobierz

Karta 3.3/5 V PCI - 4 wyjścia analogowe 16-bitowe 1 MS/sek z równoczesną aktualizacją, 3 wejścia enkodera, 16 izolowanych wejść i 16 izolowanych wyjść cyfrowych, 8 wejść i 8 wyjść cyfrowych TTL, 2 liczniki 32-bitowe i 4 wyjścia PWM (End of Life)

Ten produkt nie jest już produkowany. Proponowane zamienniki: PCI-9222, DAQ-2501

Zobacz wszystkie nasze karty akwizycji danych!

Features

Supports a 32-bit 3.3 V or 5 V PCI bus
Hardware-based waveform generation
DNL Linearity less than 1 LSB
Digital triggering for waveform generation
16-CH isolation digital inputs & 16-CH isolation digital outputs
8-CH TTL DI and 8-CH TTL DO
2-CH timer/counter, base clock: 40 MHz
4-CH PWM output
3-CH encoder inputs, supporting AB phase and CW/CCW
Multiple card synchronization through SSI (System Synchronization Interface) bus

Specifications

Analog Output

Resolution: 16 bits
Number of channels: Four (simultaneous update)
Maximum update rate: 1 MS/s
FIFO buffer size: 8k Samples (4-CH Sharing)
Output range: ±10 V
DNL: Less than ±1 LSB
Offset Error: 0.3 mV
Positive Gain Error: 0.3 mV
Negative Gain Error: 0.3 mV
Settling Time: 3 μs
Slew Rate: 20 V/μs
Rise Time: 0.67 μs
Falling Time: 0.705 μs
Output Current Capacity: 5 mA
Trigger source: Software, External digital, SSI bus
Data Transfer: Software polling, DMA

Isolated Digital Input

Number of channels: 16
Maximum input range: 24 V, non-polarity
Digital logic level
Input high voltage: 10-24 V
Input low voltage: 0-1.5 V
Isolation voltage: 2500 Vrms

Isolated Digital Output

Number of channels: 16
Sink current limitation: 250 mA for one channel @ 100% duty
Supply voltage: 5-35 VDC
Isolation voltage: 2500 Vrms

Encoder Input

Number of channels: Three
Encoder type:
CW/CCW encoder
x1 AB phase encoder
x2 AB phase encoder
x4 AB phase encoder

Function I/O

Digital I/O:
Eight DO (3.3 V TTL Level)
Eight DI (3.3 V or 5 V TTL Level)
General Timer/Counter: Two 32-bit, Base clock: 80 MHz, external to 10 MHz
Pulse Generation: Four PWM Outputs
Single pulse generation
Pulse train generation
AFI0/AFI1: D/A Convert Clock or Start Trigger
