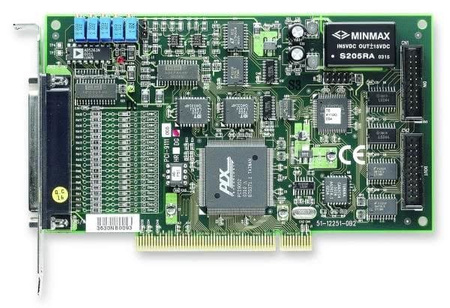

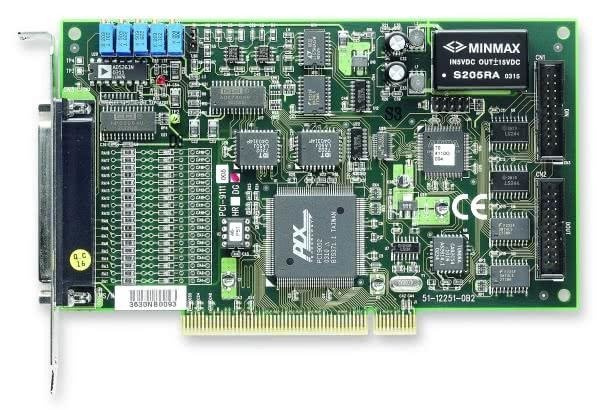

PCI-9111HR

Karta 5 V PCI - 16 wejść analogowych 16-bitowych 100 kS/sek, 1 wyjście analogowe 12-bitowe 33 kS/sek oraz 16 wejść i 16 wyjść cyfrowych

Features

• Supports a 32-bit 5 V PCI bus
• 16-bit A/D resolution
• 16-CH single-ended analog inputs
• Up to 100 kS/s sampling rate
• Onboard 1 k-sample A/D FIFO
• Programmable gains of x1, x2, x4, x8, x16
• Bipolar analog input ranges
• Onboard low-pass filtering capability for analog inputs
• Automatic analog inputs scanning
• One 12-bit multiplying analog outputs
• 16-CH TTL digital inputs and 16-CH TTL digital outputs
• 4-CH TTL extended digital inputs and 4-CH TTL extended digital outputs
• Compact, half-size PCB

Specifications

• Analog Input


• Number of channels: 16 single-ended
• Resolution: 16 bits
• Conversion time: 8 μs
• Maximum sampling rate: 100 kS/s
• Gain & Input signal ranges (software programmable):
  x1 = ±10 V, x2 = ±5 V, x4 = ±2.5 V, x8 = ±1.25 V, x16 = ±0.625 V
• Gain & Accuracy:
  x1, x2 = 0.01 % of FSR ± 1 LSB
  x4, x8 = 0.02 % of FSR ± 1 LSB
  x16 = 0.04 % of FSR ± 1 LSB
• Input coupling: DC
• Overvoltage protection: continuous ±35 V
• Input impedance: 10 MΩ
• Trigger modes: software, pacer, and external trigger (5 V/TTL compatible)
• FIFO buffer size: 1 k samples
• Data transfers: polling, interrupt


• Analog Output


• Number of channels: 1 voltage output (NO s)
• Resolution: 12 bits
• Output ranges (jumper selectable):
  bipolar: ±10 V
  unipolar: 0 ~ 10 V
• Output driving capacity: ±5 mA max
• Settling time: 30 μs
• Data transfers: programmed I/O


• Digital I/O


• Number of channels: 16 inputs and 16 outputs
• Compatibility: 5 V/TTL
• Data transfers: programmed I/O


• General


• I/O connector:
  37-pin D-sub female
  20-pin ribbon male x 2
• Operating temperature: 0°C to 60 °C
• Storage temperature: -20°C to 80 °C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: +5 V 570 ma typical
• Dimensions (not including connectors): 175 mm x 107 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-9111HR - 16-CH 16-Bit 100 kS/s Low-Cost Multi-Function DAQ Card

Accessories

• Terminal Boards


• DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting


• DIN-20P-01 - Terminal Board with One 20-pin Ribbon Connector and DIN-Rail Mounting


• ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector


• ACLD-9188-01 - General-Purpose Terminal Board with Two 20-pin Ribbon Connectors and One 37-pin D-sub Connector


• ACLD-9182A-01 - Terminal Board with 16-CH Isolated Digital Inputs


• ACLD-9185-01 - Terminal Board with 16-CH Relay Outputs


• Cable


• ACL-10137-1MM - 37-pin D-sub M/M cable, 1 M (DIN-37D-01, ACLD-9188-01)


• ACL-10137-1MF - 37-pin D-sub M/F cable, 1 M (ACLD-9137-01)


• ACL-101201-1 - 20-pin flat cable, 1 M (DIN-20P-01, ACLD-9188-01, ACLD-9182A-01, ACLD-9185-01)
