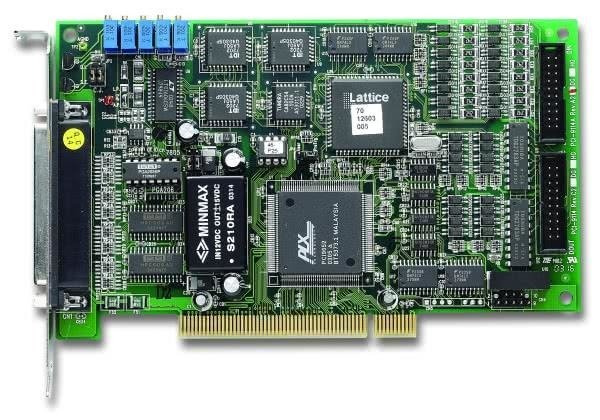

PCI-9114A-HG

Karta 5 V PCI - 16/32 wejścia analogowe 16-bitowe 250 kS/sek o dużym wzmocnieniu, 16 izolowanych wejść cyfrowych, 16 izolowanych wyjść cyfrowych i licznik 16-bitowy

Features

• Supports a 32-bit 5 V PCI bus
• 16-bit A/D resolution
• Up to 250 kS/s sampling rate
• 32-CH single-ended or 16-CH differential analog inputs
• Bipolar or unipolar analog input ranges
• Onboard 1 k-sample A/D FIFO
• Programmable gains: x1, x10, x100
• Automatic analog inputs scanning
• 16-CH isolated digital inputs and 16-CH isolated digital outputs
• 2500 Vrms optical isolation for digital inputs and outputs
• 1-CH 16-bit general-purpose timer/counter
• +12 V and -12 V power available on the 37-pin D-sub connector
• Onboard resettable fuses for power output protection
• Compact, half-size PCB

Specifications

• Analog Input


• Number of channels: 32 single-ended or 16 differential
• Resolution: 16 bits
• Conversion time: 4 μs
• Maximum sampling rate: 250 kS/s
• Gain & Input ranges (software programmable):
  x1 = ±10 V, x10 = ±1 V, x100 = ±0.1 V
• Gain & Accuracy
  x1, x10 = 0.01 % of FSR ± 1 LSB
  x100 = 0.02 % of FSR ± 1 LSB
• Input coupling: DC
• Overvoltage protection: continuous ±35 V
• Input impedance: 1 GΩ
• Trigger modes: software, pacer, and external trigger (5 V/TTL compatible)
• FIFO buffer size: 1 k samples
• Data transfers: polling, interrupt


• Isolated Digital Input


• Number of channels: 16
• Maximum input range: 24 V, non-polarity
• Digital logic levels
  0 - 24 V, non-polarity
  Input high voltage: 5 - 24 V
  Input low voltage: 0 - 1.5 V
• Input resistance: 2.4 KΩ @ 0.5 W
• Isolation voltage: 2500 Vrms
• Data transfers: programmed I/O


• Isolated Digital Output


• Number of channels: 16
• Output type: open emitter Darlington transistors
• Sink current
  350 mA for one channel @ 100% duty
  260 mA for all channels @ 10% duty
• Power dissipation: Max. 1.47 W per chip (8 DO channels)
• Supply voltage: 5-35 V
• Isolation voltage: 2500 Vrms
• Data transfers: programmed I/O


• Power Output


• Output voltage: +12 V and -12 V
• Resettable fuse protection: 500 mA


• General-Purpose Timer/Counter


• Number of channels: 1
• Resolution: 16 bits
• Compatibility: 5 V/TTL
• Base clock available: 2 MHz, external clock to 2MHz


• General


• I/O connector:
  37-pin D-sub female
  20-pin ribbon male x 2
• Operating temperature: 0˚C to 55˚C
• Storage temperature: -20˚C to 80˚C
• Relative humidity: 5% to 95 %, non-condensing
• Power requirements: +5 V 600 mA typical, +12 V 100 mA typical
• Dimensions (not including connectors): 175 mm x 107 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Drivers Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLABR
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Informations

• PCI-9114A-HG - 32-CH 16-bit 250 kS/s High-Gain Multi-Function DAQ Card

Accessories

• Terminal Boards


• DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting


• ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector


• DIN-20P-01 - Terminal Board with One 20-pin Ribbon Connector and DIN-Rail Mounting


• ACLD-9188-01 - General-Purpose Terminal Board with Two 20-pin Ribbon Connectors and One 37-pin D-sub Connector


• Cable


• ACL-10137-1MM - 37-pin D-sub M/M cable 1 M (DIN-37D-01)


• ACL-10137-1MF - 37-pin D-sub M/F cable 1 M (ACLD-9137-01)


• ACL-10120-1 - 20-pin flat cable 1M (DIN-20P-01, ACLD-9188-01)
