Features
- x1 lane PCI Express Interface
- Onboard 1 k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Programmable gains: x1, x2, x4, x8
- 512-configuration channel gain queue
- Scatter-gather DMA
- 24-CH TTL digital input/output
- 2-CH 16-bit general-purpose timer/counter
- Analog and digital triggering
- Fully auto calibration
- Multiple cards synchronization through SSI (System Synchronization Interface) bus
- Analog Input
- Resolution: 16 bits, no missing codes
- Number of channels: 16 single-ended or 8 differential (software selectable per channel)
- Channel gain queue size: 512
- Maximum sampling rate: 250 kS/s
- Programmable gain: 1, 2, 4, 8
- Bipolar input ranges: ±10 V, ±5 V, ±2.5 V, ±1.25 V
- Unipolar input ranges: Max. : 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V
- Offset error: ±1 mV
- Gain error: ±0.01% of FSR
- Input coupling: DC
- Overvoltage protection: Power on: Continuous ±30 V, Power off: Continuous ±15 V
- Input impedance: 1 GΩ/100 pF
- CMRR (gain = 1): 83 dB
- Settling time: 4 μs to 0.01% error
- -3 dB small signal bandwidth (gain = 1): 760 kHz
- Trigger sources: Software, external digital/analog trigger, SSI bus
- Trigger modes: Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger
- FIFO buffer size: 1 k samples
- Data transfers: Polling, scatter-gather DMA
- Digital I/O
- Number of channels: 24-CH 8255 programmable input/output
- Compatibility: 5 V/TTL
- Data transfers: Programmed I/O
- General Purpose Timer/Counter
- Number of channels: 2
- Resolution: 16 bit
- Base clock available: 40 MHz, external clock up to 10 MHz
- Auto Calibration
- Onboard reference: +5 V
- Temperature drift: ±2 ppm/˚C
- Stability: ±6 ppm/1000 Hrs
- General Specifications
- Dimensions: 168 mm x 107 mm (not including connectors)
- Connector: 68-pin VHDCI female x 2
- Operating temperature: 0 to 55˚C
- Storage temperature: -20 to 70˚C
- Humidity: 5 to 95 %, non-condensing
- Power requirements: +3.3 V 0.84 A, +12 V 0.604 A typical
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- D2K-DASK for Windows
- D2K-DASK/X for Linux

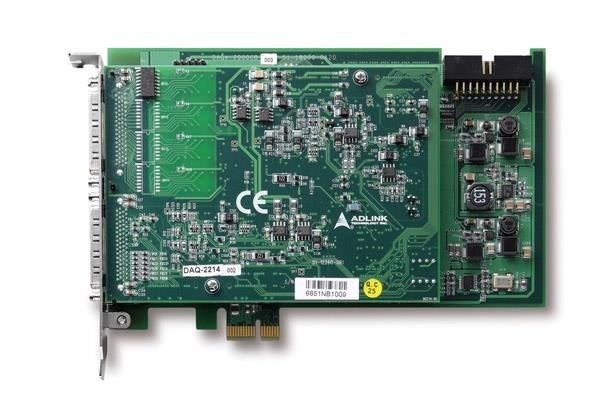

- DAQe-2213 - 8/16 x 16-bits 250 kS/s Low-Cost Multi-Function DAQ Card
- Terminal Boards
- DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (cables are not included)
- Cables
- ACL-10568-1 - 68-Pin SCSI-VHDCI cable
- SSI Bus Cables (for multiple cards synchronization)
- ACL-SSI-2 - SSI Bus cable for 2 devices
- ACL-SSI-3 - SSI Bus cable for 3 devices
- ACL-SSI-4 - SSI Bus cable for 4 devices
