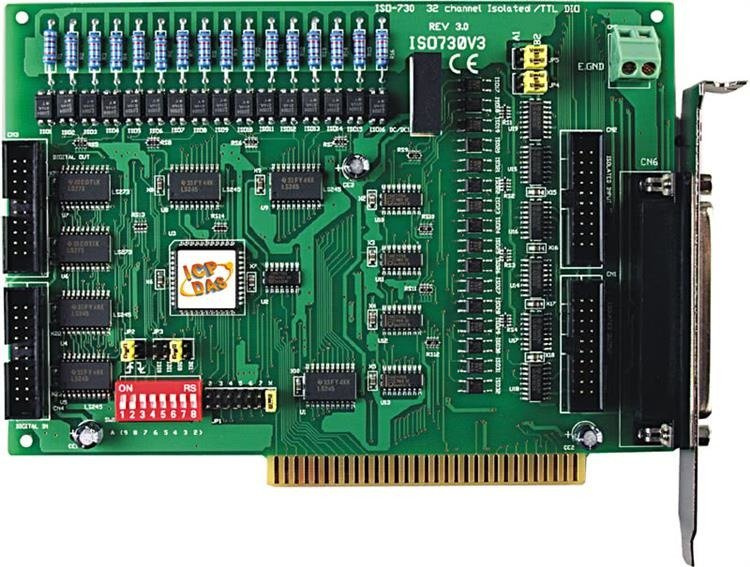

ISO-730

Karta ISA – 16 wejść cyfrowych TTL, 16 izolowanych wejść cyfrowych, 16 wyjść cyfrowych TTL, 16 izolowanych wyjść cyfrowych OC. W zestawie 1x złącze CA-4002

Features

• 16-channel optically isolated digital input
• 16-chanel optically isolated open-collector output
• 16-channel TTL level digital input (Non-isolation)
• 16-channel TTL level digital output (Non-isolation)
• One 37-pin D-sub connector and two 20-pin headers for isolated I/O
• Two 20-pin header for TTL digital I/O (Non-Isolation)
• Built-in DC/DC converter with 3000 VDC isolation
• Interrupt handling
• Interrupt source : channel 0 and channel 16
• 3750 Vrms photo-isolation protection

Specifications

• Digital Input


• Isolation Voltage: 3750 Vrms
• Channels:
  • Isolated: 16
  • Non-Isolated: 16
• Compatibility:
  • Isolated: Optical
  • Non-Isolated: 5 V/TTL
• Input Voltage:
  • Isolated:
    • Logic 0: DC 0 ~ 1 V
    • Logic 1: DC 9 ~ 24 V
  • Non-Isolated:
    • Logic 0: 0.8 V (max.)
    • Logic 1: 2.0 V (min.)
• Input Impedance: 1.2 KΩ, 0.5 W
• Response Speed:
  • Isolated: 10 kHz
  • Non-Isolated: 30 kHz


• Digital Output


• Isolation Voltage: 3750 Vrms
• Channels:
  • Isolated: 16
  • Non-Isolated: 16
• Compatibility:
  • Isolated: Sink, Open Collector
  • Non-Isolated: 5 V/TTL
• Output Voltage:
  • Non-Isolated:
    • Logic 0: 0.8 V (max.)
    • Logic 1: 2.4 V (min.)
• Output Capability:
  • Isolated: Sink: 100 mA @ 30 Vdc (max.)
  • Non-Isolated:
    • Sink: 8 mA @ 0.5 V (max.)
    • Source: 0.4 mA @ 2.4 V (min.)
• Response Speed:
  • Isolated: 10 kHz


• General


• Bus Type: ISA
• I/O Connector:
  Female DB37 x 1
  Male DB9 x 4
• Dimensions (L x W x D): 175 x 124 x 22 mm
• Power Consumption: 800 mA @ +5 V
• Operating Temperature: 0 ~ +60°C
• Storage Temperature: -20 ~ +70°C
• Humidity: 5 ~ 85% RH, non-condensing

Ordering Information

• ISO-730 CR – 32-channel Isolated digital I/O and 32-channel TTL digital I/O Board. (RoHS)
  Includes one CA-4002 D-Sub connector.

Optional Accessories

• CA-2002 – 20-pin flat cable, 20 cm x 2


• CA-2010 – 20-pin flat cable,1 M


• CA-2020 – 20-pin flat cable 2 M


• CA-3710 – DB-37 Male-Male D-sub cable 1 M  (Cable for Daughter Board(45°))


• CA-3710D – DB-37 Male-Male D-sub cable 1M  (Cable for Daughter Board(180°))


• CA-3710DM – DB-37 Male-Male Cable, 1.0 M, 180°. (RoHS)


• CA-3730DM – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)


• CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)


• DB-37 – Directly connect signal to D-sub 37-pin connector


• DN-37 – DIN Rail Mounting 37-pin Connector


• DB-16R – Isolated Relay output Daughter board


• DB-16P – Isolated Digital Input Daughter Board
