Features
- 32-bit PCI bus, Rev. 2.2, 33 MHz
- Pulse output rates up to 2.4 MHz
- Pulse output options: OUT/DIR, CW/CCW
- Encoder input frequency up to 2.4 MHz under 4 x AB mode
- 2 axes linear interpolation
- Programmable acceleration and deceleration time
- Trapezoidal and S-curve velocity profiles
- Easy interface to any stepping motors, AC or DC servo, linear or rotary motors
- 28-bit up/down counter for incremental encoder
- All digital inputs and outputs are 2500 VRMS isolated
- Change speed override
- Multi-axis, simultaneous start/stop
- Dedicated I/O interface for PEL, MEL, ORG, EZ, INP, ERC, ALM
- Programmable interrupt sources
- Manual pulser input interface
- Supports up to 12 cards in one system
- 3 ASIC-based home return modes and 9 software-based home return modes
- More than 75 thread safe API functions
- Pulse Type Motion Control
- Number of Axes: 4
- Pulse Output Rate: 0.01 pps to 2.4 Mpps programmable
- Pulse Command Output: DIR/OUT, CW/CCW
- Max. Acceleration Rate: 245 Mpps2
- Speed Resolution: 16-bit
- Encoder Input Rate: 2.4 MHz @ 3 M cable
- Encoder Counter Resolution: 28-bit
- Positioning Range: -134,217,728 to +134,217,727 pulses (28-bit)
- Max. Number of Cards in One System: 12
- Motion Interface I/O Signals
- I/O Pin: Differential and 2500 Vrms optically isolated
- Incremental Encoder Signals Input Pin: DIR/OUT, EA/EB
- Encoder Index Signal Input: EZ
- Mechanical Limit Switch Signal Input Pin: ±EL, SD, and ORG
- Servomotor Interface I/O Pin: INP, ALM, ERC, SVON, RDY
- Pulser Signal Input: PA and PB
- Simultaneous Start/Stop Signal I/O Pin: STA and STP
- OS Information
- Windows 8/7/XP
- Linux
- RTX 5.x/6.x/8.1a
- Software Compatibility
- VB/VC++/BCB/Delphi
- Various sample programs with source codes
- Software Recommendations
- MotionCreatorProOrdering Information

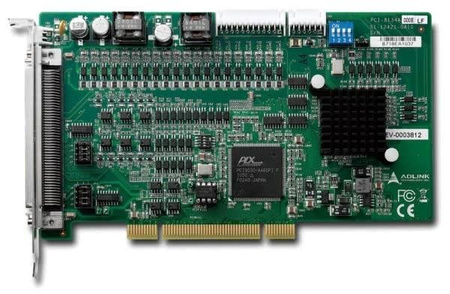

- PCI-8134A - Entry-level 4-axis servo& stepper motion controller
- Terminal Boards
- DIN-100S-01 - Terminal board with one 100-pin SCSI-II connector and DIN-rail mounting
- DIN-814-GP - Terminal board with 100-pin SCSI-II connector for general purpose
- DIN-814M0 - Terminal board for Mitsubishi MR-J2S-A servo amplifier
- DIN-814M-J3A0 - Terminal board for Mitsubishi MR-J3A servo amplifier
- DIN-814Y0 - Terminal board for Yaskawa Sigma II/III/V amplifier
- DIN-814P-A40 - Terminal board for Panasonic MINAS A4 servo amplifier
- Cabling
- ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787082-9), 1 M
