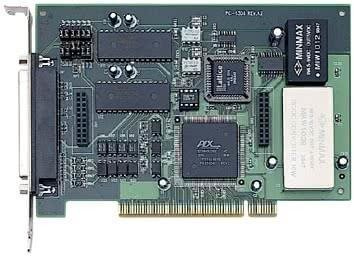

PCI-6308A

Karta 5 V PCI - 8 izolowanych napięciowych i prądowych wyjść analogowych 12-bitowych 250 kS/sek z równoczesną aktualizacją oraz 4 izolowane wejścia i 4 izolowane wyjścia cyfrowe

Features

• Supports a 32-bit 5 V PCI bus
• 12-bit D/A resolution
• Isolated 8-CH 12-bit voltage output
• Isolated 8-CH 12-bit current output
• Bipolar or unipolar output ranges
• External reference input for user-defined ranges
• 4-CH isolated digital outputs and 4-CH isolated digital inputs
• 2500 Vrms optical isolation
• Compact, half-size PCB

Specifications

• Isolated Analog Output


• Number of channels: 8 voltage outputs
• Resolution: 12 bits
• Output ranges (jumper selectable):
  Bipolar: ±10 V
  Unipolar: 0 to 10 V, 0 to EXTREF
• Settling time: 16 μs (20 V step)
• Maximum update interval: 90 μs for four channels simultaneously
• Gain error: ±0.2 % max.
• DNL: ±1 LSB
• Output driving capacity: ±5 mA
• Isolation voltage: 2500 Vrms
• Output initial status: 0 V (after RESET or POWER-ON)
• Data transfers: programmed I/O


• Current Output


• Number of channels: 8
• Resolution: 12 bits
• Output ranges (software programmable): 0-20 mA, 4-20 mA, and 5-25 mA
• Gain error: 0.3 %
• Settling time: 17 μs (0-20 mA)
• Slew rate: 1.3 mA/μs
• DNL: ±1 LSB maximum
• Output resistance: 10 GΩ typical
• Current load resistance: 0 - 500 Ω
• Output initial status: 4 mA (after RESET or POWER-ON)
• Data transfer: programmed I/O


• Isolated Digital Input


• Number of channels: 4
• Maximum input range: 24 V, non-polarity
• Digital logic levels
  Input high voltage: 5 - 24 V
  Input low voltage: 0 - 1.5 V
• Input resistance: 2.4 kΩ @ 0.5 W
• Isolation voltage: 2,500 Vrms
• Data transfers: programmed I/O


• Isolated Digital Output


• Number of channels: 4
• Output type: photo-coupler transistors
• Supply voltage: 5 to 35 V
• Isolation voltage: 2,500 Vrms
• Data transfers: programmed I/O


• General


• I/O connector: 37-pin D-sub female
• Operating temperature: 0˚C to 55˚C
• Storage temperature: -20˚C to 80˚C
• Relative humidity: 5% to 95 %, non-condensing
• Power requirements: +5 V 220 mA typical, +12 V 250 mA typical 530 mA maximum
• Dimensions (not including connectors): 175 mm x 107 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux
• Windows CE (call for availability)


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQ-LVIEW PnP for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-6308A - 8-CH 12-Bit Isolated Voltage & Current Output Card

Accessories

• Terminal Boards


• DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting


• ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector


• Cable


• ACL-10137-1MM - 37-pin D-sub M/M cable 1 M (DIN-37D-01)


• ACL-10137-1MF - 37-pin D-sub M/F cable 1 M (ACLD-9137-01)
