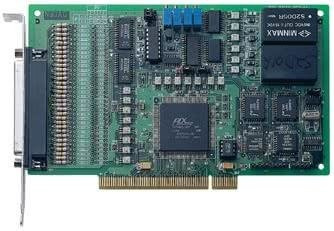

Karta 5 V PCI - 16/32 izolowane wejścia analogowe 12-bitowe 100 kS/sek
Features
- Supports a 32-bit 5 V PCI bus
- 12-bit A/D resolution
- Up to 100 kS/s sampling rate
- 32-CH single-ended or 16-CH differential inputs
- Onboard 1 k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Programmable gains of x1, x10, x100
- Automatic analog inputs scanning
- Onboard low-pass filtering capability for analog inputs
- 2500 Vrms optical isolation
- Compact, half-size PCB
Specifications
- Analog Input
- Number of channels: 32 single-ended or 16 differential
- Resolution: 12 bits
- Conversion time: 8 μs
- Maximum sampling rate: 100 kS/s
- Gain & Input signal ranges:
1x = bipolar: ±10 V, ±5 V, unipolar: 0 ~ 10 V
10x = bipolar: ±1 V, ±0.5 V, unipolar: 0 ~ 1 V
100x = bipolar: ±0.1 V, ±0.05 V, unipolar: 0 ~ 0.1 V - Accuracy: 0.01 % of FSR ± 1 LSB
- Input coupling: DC
- Overvoltage protection: continuous ±35 V
- Input impedance: 1 GΩ
- Trigger modes: software, pacer
- FIFO buffer size: 1 k samples
- Data transfers: polling, interrupt
- Isolation Voltage: 2500 Vrms
- General
- I/O connector: 37-pin D-sub female
- Operating temperature: 0˚C to 55˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements
- Dimensions (not including connectors): 173 mm x 107 mm
Software Support
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux
Ordering Information
- PCI-9113A - 32-CH 12-Bit 100 kS/s Isolated Analog Input Card
Accessories
- Terminal Boards
- DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting
- ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector
- Cable
- ACL-10137-1MM - 37-pin D-sub M/M cable 1 M (DIN-37D-01)
- ACL-10137-1MF - 37-pin D-sub M/F cable 1 M (ACLD-9137-01)
