Features
- Supports a 32-bit 3.3 V or 5 V PCI bus
- 12-bit A/D resolution
- Up to 20 MS/s simultaneous-sampling rate
- >17 MHz -3 dB bandwidth
- 4-CH single-ended inputs
- Bipolar analog input ranges
- User-selectable input impedance of 50 Ω or high-input impedance
- Onboard 32 k-sample A/D FIFO
- Analog and digital triggering
- External clock input for customized conversion rate
- Bus-mastering DMA for analog inputs
- 3-CH TTL digital inputs
- Compact, half-size PCB
- Analog Input
- Number of channels: 4 single-ended
- Resolution: 12-bit
- Maximum sampling rate: 20 MS/s
- Input signal ranges, impedance and overvoltage protection:
range ±1 V, input impedance 50 Ω/15 MΩ, overvoltage protection ±2 V
range ±5 V, input impedance 50 Ω/1.25 kΩ, overvoltage protection ±10 V - Accuracy: ±1.5 % typical
- DNL: ±0.4 LSB typical, ±1.0 LSB maximum
- INL: ±1.9 LSB typical
- Input coupling: DC
- Trigger sources: software, analog and digital trigger (5 V/TTL compatible)
- Trigger modes: software-trigger, pre-trigger, post-trigger, middle-trigger & delay trigger
- FIFO buffer size: 32 k samples
- Data transfers: bus-mastering DMA
- Triggering
- Analog Triggering
- Modes: pre-trigger, post-trigger, middle-trigger, delay-trigger
- Source: CH0, CH1, CH2 and CH3
- Slope: rising/falling
- Coupling: DC
- Trigger sensitivity: 256 steps in full-scale voltage range
- Digital Triggering
- Modes: pre-trigger, post-trigger, middle-trigger, delay-trigger
- Source: external digital trigger
- Slope: rising edge
- Compatibility: 5 V/TTL
- Minimum pulse width: 25 ns
- External Sine Wave Clock
- Input coupling: AC
- Input impedance: 50 Ω
- Input frequency: 300 kHz to 40 MHz
- Input range: 1.0 to 2.0 Vpp
- Overvoltage protection: 2.5 Vpp
- External Digital Clock
- Input coupling: DC
- Input impedance: 50 Ω
- Compatibility: 5 V/TTL
- Input frequency: 20 kHz to 40 MHz
- Overvoltage protection: diode clamping, -0.3 V to +5.3 V
- Digital Input
- Number of channels: 3
- Compatibility: 5 V/TTL with 10 KΩ pull down resistors
- Overvoltage protection: Diode clamping, -0.3 V to +5.3 V
- Data transfers: bus-mastering DMA with A/D samples
- General
- I/O connector:
BNC x 5
10-pin ribbon male - Operating temperature: 0˚C to 40˚C
- Storage temperature: -20˚C to 70˚C
- Relative humidity: 5% to 95 %, non-condensing
- Power requirements: +5 V 1.4 A typical
- Dimensions (not including connectors): 173 mm x 108 mm
- Operating Systems
- Windows Vista/XP/2000/2003
- Linux
- Windows CE (call for availability)
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

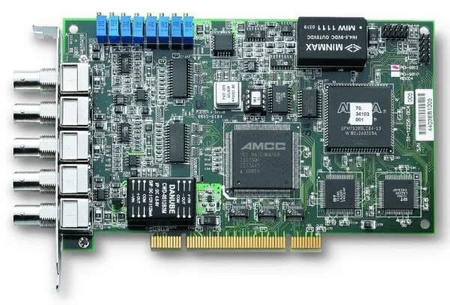

- PCI-9812 - 4-CH 12-Bit 20 MS/s Simultaneous-Sampling Analog Input Card with 32 k-Sample A/D FIFO
