Features
- Transducer Inputs for precise measurement of large-scale transducers
- 4-CH strain gauge-based transducer inputs
- Accuracy up to 1/200,000 counts at full-scale
- Sensitivity from 1.0 mV/V to 4.0 mV/V
- 2.5 / 10 VDC excitation voltage
- Internal 24-bit A/D resolution
- Motion Controller for stepper and hydraulic system control
- 3-axis motion controller with OUT/DIR output
- 2-CH 16-bit analog outputs
- A-B phase encoder input with 24-bit counter
- General-Purpose Analog Inputs for accurate measurements of LVDT (Linear Variable Displacement Transducer) and linear wire potentiometer signals
- 4-CH analog input with 24-bit resolution
- Programmable gains of ±1.25 V, ±2.5 V, ±5 V, ±10 V
- Up to 30 kS/s sampling rate (single channel)
- 4-channel Load Cell transducer input
- Excitation voltage: 2.5 V/10 VDC
- Internal A/D resolution: 24 bit
- Update speed when Auto-zero Disabled
Up to 30 KSPS (single channel)
Up to 4 KSPS (multi-channel) - Update speed when Auto-zero Enabled
Up to 800 SPS (single channel or multi-channel)
Transducer sensitivity: 1.0 mV/V to 4.0 mV/V - Number of channels: 4
- Accuracy: 1/200000 of full scale
(with remote sense & auto zero enabled) - Onboard 256 samples A/D FIFO
- Motion Control
- Number of axis: 3
- Pulse output options: OUT/DIR
(26LS31, differential line driver, driving current: up to 20 mA) - Maximum output frequency: 500 kHz
- Encoder Input: 24-bit up/down counter for incremental encoder feedback
- General Purpose Analog Input
- Resolution: 24-bit
- Programmable range: ±1.25 V, ±2.5 V, ±5 V, ±10 V
- Number of channels: 4
- Sampling rate: 30 kS/s (non-multiplexing)
- Onboard 256 samples A/D FIFO
- Isolated Digital Input
- Number of channels: 8
- Maximum input range (non-polarity): 0 V to 24 V
- Input resistance: 2.7 KΩ
- Isolated Digital Output
- Number of channels: 8
- Output type: Power MOSFET
- Sink current: Up to 300 mA/channel
- Analog Output
- Resolution: 16-bit
- Output range: ±10 V
- Number of channels: 2
- Update rate: Up to 5 kS/s
- Onboard 1 K samples D/A FIFO
- Driving capability: 5 mA
- Supported Operating Systems
- Windows Vista/XP/2000/2003
- Linux
- Recommended Application Environments
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- PCI-DASK for Windows
- PCI-DASK/X for Linux

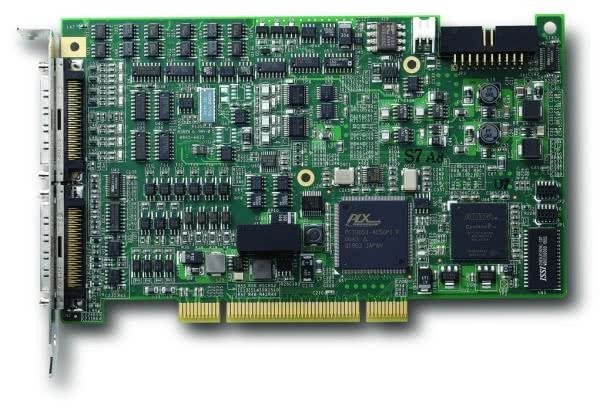

- PCI-9524 - 24-bit Precision Load Cell Input Card
- Terminal Boards
- DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (cables are not included)
- Cables
- ACL-10568-1 - 68-PIN SCSI-II cable 1m
