Features
- Standard height, half-length PCI form factor
- Supports 5 V and 3.3 V PCI signals
- Supports the 32-bit /66 MHz PCI interface
- 4 channels of simultaneous single-ended analog input
- 16-bit high resolution A/D converter
- Up to 40 MS/s per channel
- 512 MB on-board memory for data storage
- Software selectable 50 Ω or 1 MΩ input impedance
- Programmable input voltage range: ±0.2 V / ±1 V
- 20 MHz analog input bandwidth
- Multiple module synchronization via SSI (System Synchronization Interface)
- Supports scatter-gather DMA transfer
- Fully automated calibration
- Analog Input
- Number of channels: 4 single-ended channels
- Input impedance: 50 Ω or 1 MΩ, software selectable
- Input coupling: DC
- Input range: ±0.2 V, ±1 V
- ADC resolution: 16 bits, 1 in 65536
- Crosstalk: <-80 dB from DC to 1 MHz, for all input ranges
- System noise, unit in LSBRMS:
input range ±0.2 V: 8.0
input range ±1 V: 5.0
- Offset error: ±0.2mV
- Gain error:
input range ±0.2 V: ±0.1%
input range ±1 V: ±0.05% - -3dB Bandwidth, typical:
input range ±0.2 V, ±1 V: 20 MHz - Timebase
- Sample clock sources:
Internal: on-board oscillator
External: CLK IN (front panel SMB connector), SSI Bus - Timebase frequency range: 1 MHz - 40 MHz
- Dedicated External Clock Input From Panel
- Connector type: SMB
- Clock type: sine wave or square wave
- Input impedance: 50Ω
- Input coupling: AC
- Input range: 1 Vp-p to 2 Vp-p
- Overvoltage protection: 2.5 Vp-p
- Triggering
- Trigger sources:
software
TRG IO (front panel SMB connector)
Analog trigger from CH0 - CH3
SSI
- Trigger modes: Pre-trigger, post-trigger, middle-trigger, delay-trigger
- Data Storage and Transfer
- On-board memory: 512 MB, shared among the four AI channels
- Data transfer: scatter-gather DMA
- On-board Reference
- On-board reference voltage: +5 V
- Temperature drift: ±3 ppm/°C
- Recommended warm-up time: 15 minutes
- General
- I/O Connector:
BNC x4 for analog inputs
SMB x2 for external digital trigger and external timebase input - Dimensions (not including connectors):
standard height, half length PCI card, 167.64 mm by 106.68 mm - PCI Bus Interface
support 3.3 V and 5 V signaling
interface: 32-bit, 66 MHz - Operating Environment:
Ambient temperature: 0°C to 50°C
Relative humidity: 10% to 90%, non-condensing - Storage Environment:
Ambient temperature: -20°C to 80°C
Relative humidity: 10% to 90%, non-condensing - Power Requirement, typical: +3.3 V 0.8 A, +5 V 2.0 A, +12 V 0.3 A
- Multi-Module Synchronization
- Can be synchronized through a dedicate interface, SSI (System Synchronized Interface).
- Operating Systems
- Windows VISTA/XP/2000
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- WD-DASK for Windows
- WD-DASK/X for Linux

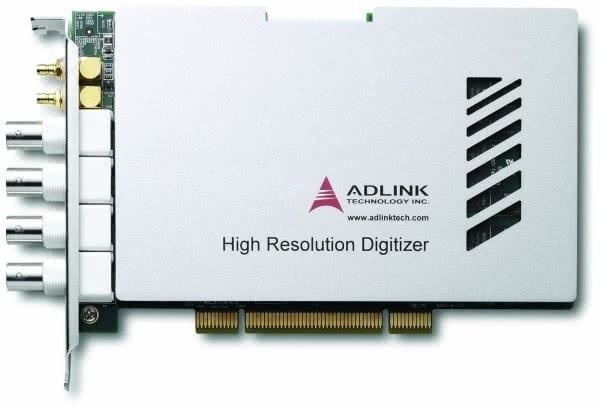

- PCI-9846D/512 - 4 x AI 16-bits 40 MS/s Digitizer with ±0.2V, ±1V Input Range, 20 MHz -3db Bandwidth and 512 MB Memory
- SMB-SMB-1M - 1 meter SMB to SMB cable
- SMB-BNC-1M - 1 meter SMB to BNC cable
- ACL-SSI-2 - SSI Bus cable for 2 devices
- ACL-SSI-3 - SSI Bus cable for 3 devices
- ACL-SSI-4 - SSI Bus cable for 4 devices
