Features
- Supports a 32-bit 3.3 V or 5 V PCI bus
- 14-bit A/D resolution
- Up to 60 MS/s sampling rate per channel with internal timebase
- Up to 65 MS/s sampling rate per channel with external timebase
- Up to 130 MS/s sampling rate in "ping pong" mode
- 2-CH single-ended bipolar inputs
- >30 MHz -3 dB bandwidth
- Up to 512 MB onboard SODIMM SDRAM
- Programmable ranges of ±1 V and ±5 V
- User-configurable input impedance of 50 Ω or high input impedance
- Scatter-gather DMA
- Analog and digital triggering
- Fully auto calibration
- Multiple modules synchronization capability
- Analog Input
- Number of channels: 2 simultaneous-sampled single-ended
- Resolution: 14 bits
- Maximum sampling rate:
65 MS/s for 2 inputs
130 MS/s for Ping-Pong mode using external timebase - Onboard sample memory: 512 MB
- Bandwidth (-3 dB): 30 MHz minimum
- Input signal ranges: (software programmable) ±5 V, ±1 V
- Input Coupling: DC
- Overvoltage protection:
range ±1 V: ±5 V
range ±5 V: ±14 V - Input Impedance (soldering selectable): 50 Ω, 1.5 MΩ
- Crosstalk: < -80 dB, DC to 1 MHz
- Total harmonic distortion (THD): -75 dB
- Signal-to-Noise ratio (SNR):
range ±1 V: 62 dB
range ±5 V: 66 dB - Spurious-free dynamic range (SFDR): 75 dB
- Data transfer: bus-mastering DMA with scatter-gather
- Auto Calibration
- Onboard reference: +5 V
- Onboard reference temperature drift: 2 ppm/˚C
- Stability: 6 ppm/1000 Hrs
- External Timebase Input
- direct external timebase input
- Connector: SMB
- Impedance: 50 Ω
- Coupling: AC
- Input amplitude: 1 Vpp to 2 Vpp
- Overvoltage protection: 2.5 Vpp
- Frequency range: 500 kHz - 65 MHz
- Triggering
- Analog Triggering
- Modes: pre-trigger, post-trigger, middle-trigger, delay-trigger
- Sources: CH0 and CH1
- Slope: rising/falling
- Coupling: DC
- Trigger sensitivity: 256 steps in full-scale voltage range
- Digital Triggering
- Modes: pre-trigger, post-trigger, middle-trigger, delay-trigger
- Source: external digital trigger from SMB
- Slope: rising/falling
- Compatibility: 5 V/TTL
- Minimum pulse width: 10 ns
- Repeated trigger rearming interval: 2 cycles of timebase
- Pre-trigger depth: 512 MB
- Post-trigger depth: 512 MB
- General
- I/O connector
BNC x 2 for analog inputs
SMB x 4 for external digital trigger, external time base, and synchronous digital inputs - Operating temperature: 0˚C to 50˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirement:
+5 V 895 mA typical, +12 V 295 mA typical,
+3.3 V 430 mA typical (with 512 MB SDRAM) - Dimensions (not including connectors): 175 mm x 107 mm
- Operating Systems
- Windows Vista/XP/2000/2003
- Linux
- Windows CE (call for availability)
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- WD-DASK for Windows
- WD-DASK/X for Linux

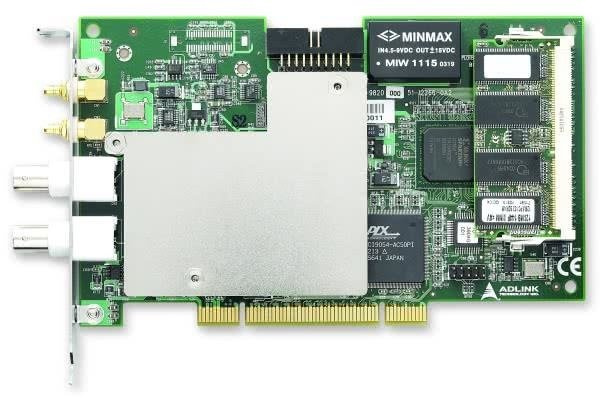

- PCI-9820D/512-0 - 2-CH 65 MS/s 14-Bit Digitizer with 512 MB Memory
- SMB-SMB-1M - 1-meter SMB to SMB cable
- SMB-BNC-1M - 1-meter SMB to BNC cable
- ACL-SSI-2 - SSI Bus cable for 2 devices
- ACL-SSI-3 - SSI Bus cable for 3 devices
- ACL-SSI-4 - SSI Bus cable for 4 devices
