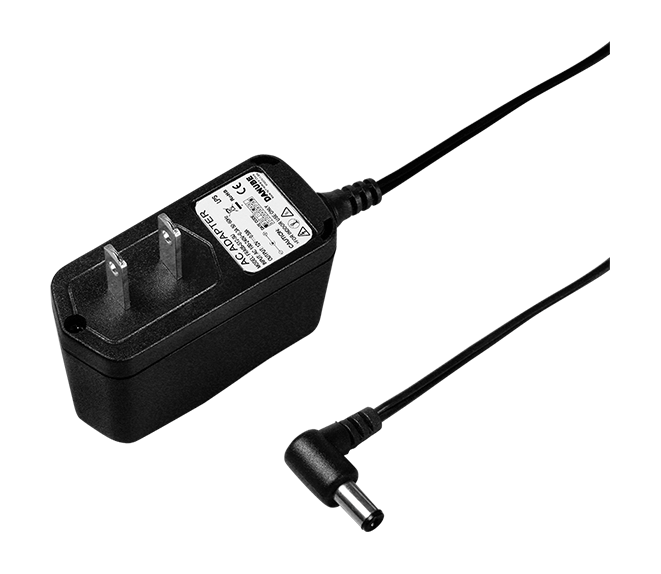

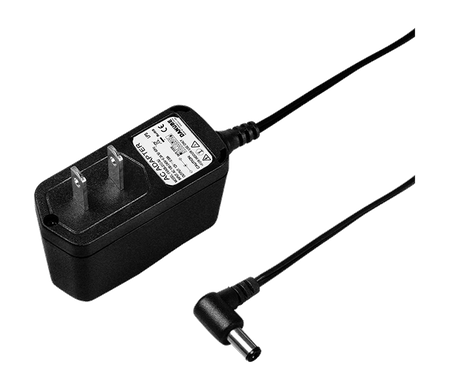

Name: FRA05-S12-SU
Brand: ICP DAS

Parametry techniczne:

Product Range:	Power Supply
Safety
Safety: Standard:	Meets or exceeds UL1950,CSA C22.2, TUV EN60950, IEC950. (Pending)
EMC
EMC: Standard:	Meets conduction limits of FCC Part 15 Class B, CISPR 22.2
Input
Input: Voltage Range:	100-240 VDC
Input: Frequency Range:	50/60 Hz
Input: Inrush Current (Typ.):	COLD START 30 A @ 115 VAC, or 50 A @ 230 VAC at 25°C
Output
Output: Ripple & Noise (Max.):	±3% p-p max.
Output: Voltage Adj. Range:	100-240 VAC
Output: Hold Up Time (Typ.):	10msec min.
Output: DC Voltage:	12 VDC
Output: Rated Power:	7 W
Output: Rated Current:	0.58 A
Output: Efficiency:	75% min. while measuring at normal line and rated load.
Mechaniczny
Mechanical: Casing:	Plastic
Mechanical: Dimensions (mm):	(27.8 * 42.0 * 63.1) mm
Środowisko
Environment: Temperature Coefficient:	All outputs ±0.03%/°C max.
Environment: Operating Temperature:	-10 °C ~ +70°C
Environment: Storage Temperature:	-20 °C ~ +85°C
Environment: Humidity:	10% ~ 95% RH, non-condensing
Status:	Available
