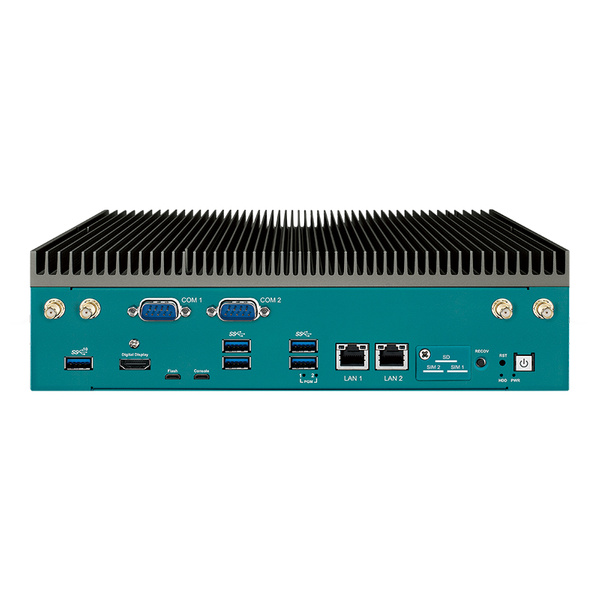

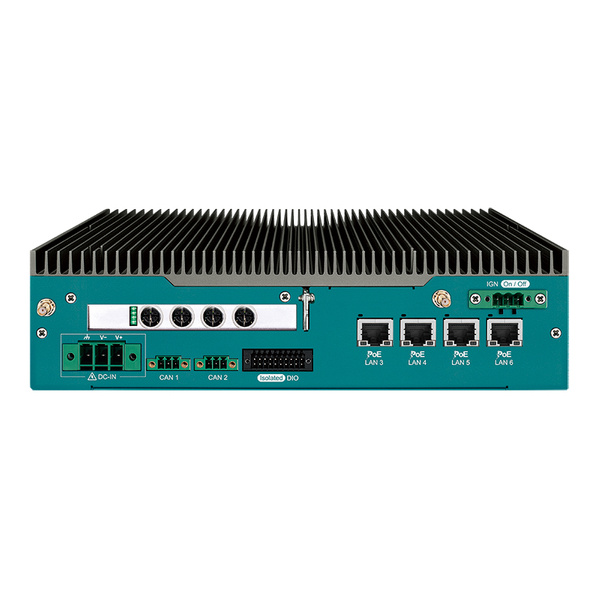

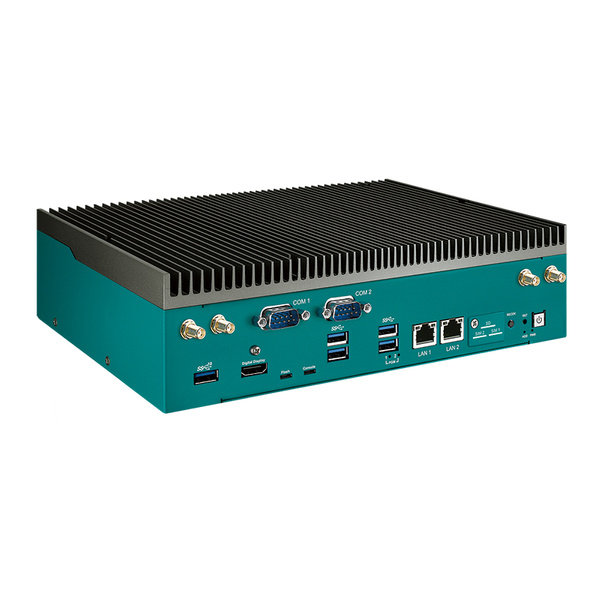

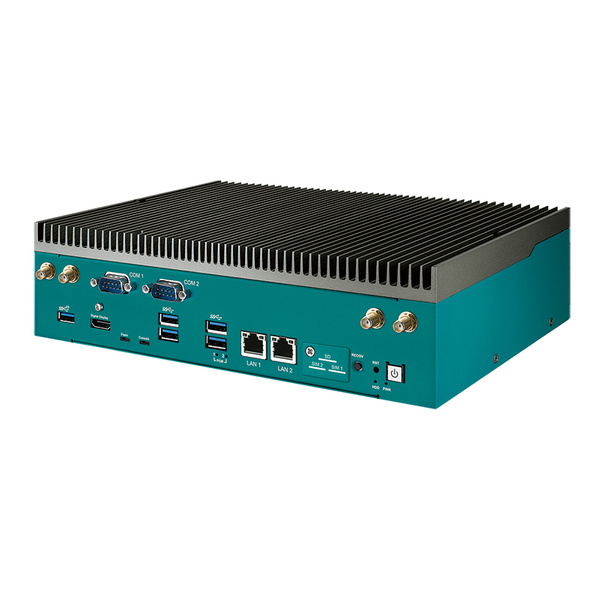

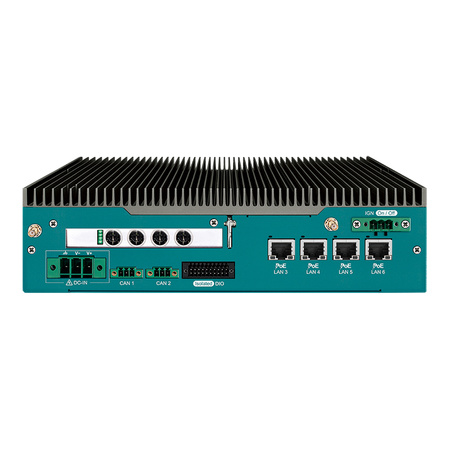

Name: EAC-5100 - Przemysłowy BOX PC z NVIDIA® Jetson AGX Orin™
Brand: Vecow

Karta katalogowa Pobierz

Vecow EAC-5000 Series is powered by NVIDIA Jetson AGX Orin platform that features an Arm® Cortex®-A78AE CPU delivering up to 275 TOPS of AI performance and integrates an advanced NVIDIA Ampere architecture GPU with 64 Tensor Cores. It’s capable of delivering server-class performance for edge AI applications. The EAC-5000 Series is rugged in design and supports high compute density with I/O flexibility, including 8 GMSL2 cameras, 1 PCIe x8 slot, 2 GigE LAN with an optional choice of X-coded M12 connector, 5 USB, 2 COM, 2 Isolated CAN Bus, and 2 SIM card sockets. With support for 9V to 50V wide range DC-in, operating temperature range from -25°C to 70°C, as well as software ignition control, Vecow EAC-5000 Series is ideal for in-vehicle computing, robotic control, machine vision, intelligent video analytics, mobile robots, and any embedded AI applications.

Cechy

Adavnced NVIDIA® Jetson AGX Orin™ platform delivers up to 275 TOPS AI performance
Latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
1 PCIe Gen4 x8 expansion slot supports optional multiple 10GigE/PoE LAN/USB connections
2 Isolated CAN Bus support Flexible Data-rate,2 COM RS-232/422/485
6 GigE LAN with 4 PoE+, 5 USB 3.1, 1 Digital Display supports 8K60
Supports device remote management by Allxon
DC 9V to 50V wide range power input, Ignition Power Control

Feature Highlights

Power-efficient AI Productivity

NVIDIA Jetson AGX Orin Platform, max 12-core Arm Cortex-A78AE v8.2 64-bit CPU, up to 275 TOPS AI performance with power configurable between 15W and 60W
The latest NVIDIA Ampere architecture GPU with max 2048 NVIDIA CUDA cores and 64 Tensor cores
2x NVIDIA Deep Learning Accelerate Engines
LPDDR5x Memory, up to 64GB
Up to 8X performance of NVIDIA Jetson AGX Xavier platform

Flexible Integration

Supports GMSL Gen 2/Gen 1 automotive cameras via 8 FAKRA-Z connectors
2 GigE LAN, 2 COM RS-232/422/485, 2 External SIM Socket
5 USB 3.1, up to 10Gbps data transfer
Multiple Compact M.2 Socket : M.2 Key B, M.2 Key E, M.2 Key M
1 PCIe Gen 4 x8 expansion slot supports optional multiple 10GigE LAN/PoE LAN/USB connections
8K60 Display, Video Encode, Video Decode

Mobile Availability

Compact Size, Rugged Designs
With power configurable between 15W and 60W, high power efficiency
Multiple 5G/4G/LTE/WiFi/BT/GPS connection supports always-on wireless communication supporting seamless data delivery
CAN Bus and FAKRA-Z for Autoware applications
Software Ignition Control optimized for in-vehicle operation
Anti-shock, Anti-vibration

Industrial-grade Reliability

Fanless -25°C to 70°C operation
DC 9V to 50V wide range power input
16-mode Ignition Power Control
2 Isolated CAN Bus, CAN FD supported
16 Isolated DIO : 8 DI, 8 DO
Optional Rugged X-coded GigE LAN
EN50155 and EN50121-3-2 compliant
Military-grade MIL-STD-810G Compliant

Specyfikacja

System
CPU	EAC-5100-R32 : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU EAC-5100-R64 : 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
GPU	EAC-5100-R32 : 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores EAC-5100-R64 : 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor Cores
DL Accelerator	2x NVDLA Engines
Memory	EAC-5100-R32 : 1 32GB LPDDR5 DRAM EAC-5100-R64 : 1 64GB LPDDR5 DRAM
Software Support	- Linux - NVIDIA JetPack SDK
I/O Interface
USB	- 1 USB 3.2 Gen 2 - 4 USB 3.1
Serial	2 COM RS-232/422/485
CAN Bus	2 Isolated CAN Bus support CAN FD
DIO	16 Isolated DIO (8 DI, 8 DO)
Micro USB	- 1 Micro USB console debug port - 1 Micro USB OS flash port
Button	- 1 Power Button - 1 Force Recovery Button - 1 Reset Button
LED	Power, SSD, 2 User Programmable
SIM	2 SIM Card Socket
Antenna	6 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS
Expansion
PCIe	1 PCIe x16 slot with PCIe 3.0 x8 signal
M.2	- 1 M.2 Key B Socket (3042/3052, USB3) - 1 M.2 Key E Socket (2230, PCIe/USB)
Graphics
Interface	1 Digital Display, up to 8K60
Video Encode	EAC-5100-R32 : 1x 4K @60, 3x 4K @30, 6x 1080p @60, 12x 1080p @30 (HEVC) EAC-5100-R64 : 2x 4K @60, 4x 4K @30, 8x 1080p @60, 16x 1080p @30 (HEVC)
Video Decode	EAC-5100-R32 : 1x 8K @30, 2x 4K @60, 4x 4K @30, 9x 1080p @60, 18x 1080p @30 (HEVC) EAC-5100-R64 : 1x 8K @30, 3x 4K @60, 7x 4K @30, 11x 1080p @60, 22x 1080p @30 (HEVC)
Storage
M.2	2 M.2 Key M Socket (2280, PCIe Gen3 x4)
eMMC	1 eMMC 5.1, 64GB
SD	1 Micro SD (External)
Ethernet
LAN 1	10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 2	10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector (Optional X-coded M12 Connector)
Ethernet (PoE)
LAN 3	IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 4	IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 5	IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 6	IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
Power
Power Input	DC 9V to 50V
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16-mode Software Ignition Control
Remote Switch	3-pin Remote Switch Terminal Block
Mechanical
Dimensions	260 mm x 182 mm x 69 mm (10.24"x 7.17" x 2.72")
Weight	3.8 kg (8.39 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional)
Environment
Operating Temperature	30W TDP Mode : -25°C to 70°C (-13°F to 158°F) 40/50W TDP Mode : -25°C to 55°C (-13°F to 131°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 70°C
Shock	Operating, MIL-STD-810G, Method 516.7, Procedure I
Vibration	Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4
EMC	CE, FCC, EN50155, EN50121-3-2
