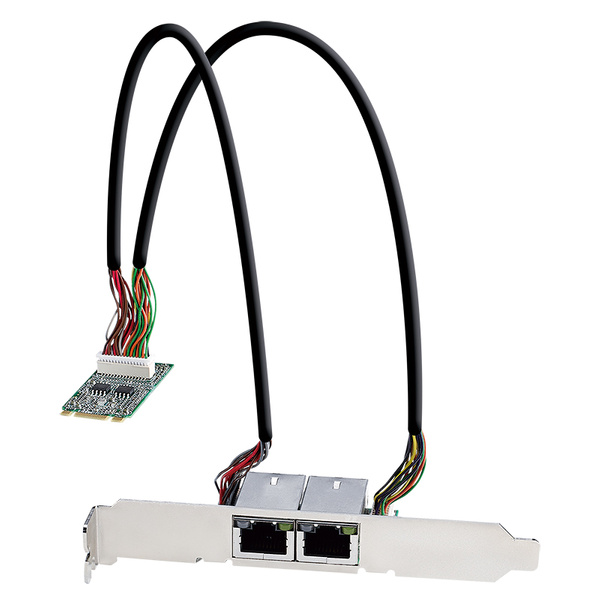

Vecow M.2 Module can integrate multiple functions. The LMT-100 Series features 2-port GigE LAN with optional PoE+, with Key B and Key M configurations.
Cechy
- Intel® I210 Ethernet Controller supports 2-port independent GigE LAN
- -40°C to 85°C Operating Temperature
- Flexible supports M.2 Key B, Key M

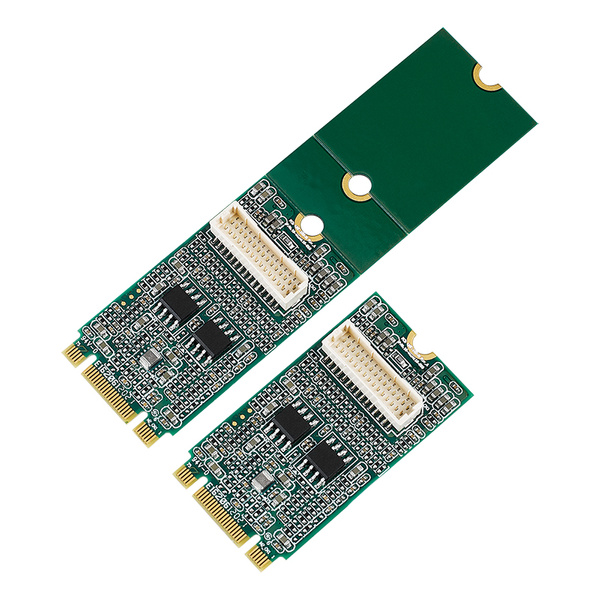

- Foldable design supports multiple M.2 form factors：2242, 2252, 2280
- Up to 9.7KB Jumbo Frame, Link Aggregation
- 12V to 24V Power Input
- IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Compliant
- Supports IEEE 802.3x Full Duplex Flow Control
- Supports IEEE 802.1P Layer 2 Priority Encoding
- Supports IEEE 802.1Q VLAN Tagging
Specyfikacja
| Ethernet | |
| Controller | Intel® I210 Ethernet Controller |
| Data Rate | 1Gbps/100Mbps/10Mbps |
| Jumbo Frame | Up to 9.7KB supported |
| Link Aggregation (LAG) | Present |
| Connector | 8-pin RJ45 |
| VLAN | 802.1Q VLAN support |
| Mechanical | |
| Dimensions (W x L) |
- M.2 Card: 22mm x 80mm (Foldable design for 22mm x 42mm or 22mm x 52mm
- Daughter Card ：50.5mm x 27.7mm
- Cable Length : 300mm
|
| Weight | 145 g |
| Environment | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) with air flow |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @85°C |
| EMC | CE, FCC |
