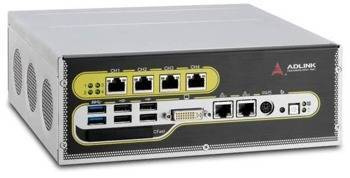

EOS-1220/M8G (End of Life)

Features

• Compact and rugged system design
• Embedded Intel Core i7-3610QE 2.3GHz CPU
• Up to 4-CH Gigabit PoE (power over Ethernet), 4.0 Gb/s
• Supprt for IEEE-1588, PTP technology
• Support for two USB 3.0 ports
• Support for wall and DIN rail mounting (optional)
• One internal USB port and 1Kbit EEPROM
• RAID system (Dual SATA interface)
• PNP/NPN DI/O

Specifications

• CPU: Intel Core i7-3610QE 2.3GHz
• System Memory: Up to 8 GB DDR3
• Camera Interface:
  4-CH Gigabit power over Ethernet
  IEEE 802.3af compliant, total max. power output 32 W
• Chipset: Intel QM67 Express chipsets
• VGA:
  VGA+DVI-D output by DVI-I connector, up to QXGA (2048 x 1536) resolution
• USB: Four USB 2.0 port, two USB 3.0 ports
• Audio: AC97, mic in/speaker out
• COM Ports:
  Two software-programmable RS-232/422/485 (COM1 & COM2),
  two RS-232 (COM3 & COM4)
• Digital I/O (Option): 16-CH isolated digital input and output, PNP/NPN type
• Keyboard/Mouse: PS/2 type mini-DIN connectors
• Power Supply:   10 ~ 30 Vdc, ATX mode
• Operating Temp.: 0 ~ +55˚C
• Humidity: 0 ~ 90%
• Dimensions (W x D x H): 230 x 206 x 82 mm
• Power Consumption: 110 W
  (with 4 GB DDRAM and 4 GB CFAST)
• Storage:
  One CFAST slot,
  two 2.5" SATA interfaces
• Random Vibration: Operating, 5 Grms, 5-500 Hz, 3 axes (w/CFAST or SSD)
• Safety compliance: CE/FCC, RoHS

Software Support

• Windows XP, 7, XP Embedded, Embedded Standard 7

Ordering Information

• EOS-1220/M8G - 4-CH Gigabit PoE embedded vision system equipped with 2nd generation Intel Core i7-3610QE processor and 8 GB RAM

Optional Accessories

• 32 GB SSD option - Factory-installation of 32 GB SATA solid state drive

• 4 GB CFAST option - Factory-installed 4 GB CFAST card

• 150 W AC adapter - 150 W industrial-grade AC adapter

• DIN rail kit - DIN rail mount kit

• COM port cable - DSUB 62-pin male to 4 DSUB 9-pin male cable
