Features
- Compact and rugged system design
- Embedded Intel Core i7 Quad Core CPU
- Up to 4-CH Gigabit PoE (power over Ethernet), 4.0 Gb/s
- Supprt for IEEE-1588, PTP technology
- Support for two USB 3.0 ports
- Support for wall and DIN rail mounting (optional)
- One internal USB port and 1Kbit EEPROM
- RAID system (Dual SATA interface)
- PNP/NPN DI/O
- CPU: Intel Core i7 2.1 GHz
- System Memory: Up to 8 GB DDR3
- Camera Interface:
4-CH Gigabit power over Ethernet
IEEE 802.3af compliant, total max. power output 32 W - Chipset: Intel QM67 Express chipsets
- VGA:
VGA+DVI-D output by DVI-I connector, up to QXGA (2048 x 1536) resolution - USB: Four USB 2.0 port, two USB 3.0 ports
- Audio: AC97, mic in/speaker out
- COM Ports:
Two software-programmable RS-232/422/485 (COM1 & COM2),
two RS-232 (COM3 & COM4) - Digital I/O (Option): 16-CH isolated digital input and output, PNP/NPN type
- Keyboard/Mouse: PS/2 type mini-DIN connectors
- Power Supply: 10 ~ 30 Vdc, ATX mode
- Operating Temp.: 0 ~ +55˚C
- Humidity: 0 ~ 90%
- Dimensions (W x D x H): 230 x 206 x 82 mm
- Power Consumption: 110 W
(with 4 GB DDRAM and 4 GB CFAST) - Storage:
One CFAST slot,
two 2.5" SATA interfaces - Random Vibration: Operating, 5 Grms, 5-500 Hz, 3 axes (w/CFAST or SSD)
- Safety compliance: CE/FCC, RoHS
- Windows XP, 7, XP Embedded, Embedded Standard 7

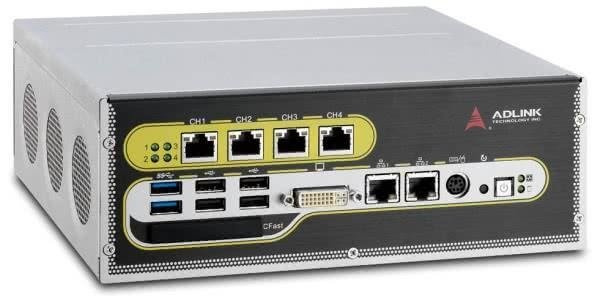

- EOS-1200/M4G - 4-CH Gigabit PoE embedded vision system equipped with 2nd generation Intel Core i7, 2.1 GHz quad core processor and 4 GB RAM
- 32 GB SSD option - Factory-installation of 32 GB SATA solid state drive
- 4 GB CFAST option - Factory-installed 4 GB CFAST card
- 150 W AC adapter - 150 W industrial-grade AC adapter
- DIN rail kit - DIN rail mount kit
- COM port cable - DSUB 62-pin male to 4 DSUB 9-pin male cable
