Features
OS Information
- Compact, rugged system design
- Embedded 3rd Gen Intel Core i5/i7 Quad Core CPU
- 2-CH PoCL, base Camera Link configuration
- One internal USB port and 1kbit EEPROM
- RAID system (Dual SATA interface)
- 64-CH isolation DI/O with digital filter
- Support for wall and DIN rail mounting (optional)
- Hardware monitoring of temperature, voltage, and watchdog timer
- CPU: Intel Core i7-3610QM, i5-3610ME
- Chipset: Intel QM67 Express
- System Memory: DDR3 SODIM x2, up to 16 GB
- Video: VGA+DVI-D output by DVI-I connector, up to QXGA (2048 x 1536) resolution
- Ethernet: 2x GbE port
- USB:
• 4 x external USB 2.0,
• 2 x external USB 3.0,
• 1 x internal USB 2.0 - EEPROM size: 1 kbit programmable EEPROM
- COM Ports:
• Two software-programmable RS-232/422/485 (COM1 & COM2),
• two RS-232 (COM3 & COM4) - Keyboard/Mouse: PS/2 type mini-DIN connectors
- Camera Interface: 2-CH Camera Link base configuration, up to 85 MHz
- Digital I/O: 32 DI, 32 DO
• COS interrupt for all digital input
• 2.5 kV isolation protection
• Configurable Digital Filter (0.25 μs-131 ms) - Trigger I/O: 2 trigger input, 1 encoder input
- Weight: 3 kg
- Mounting: Wall and DIN rail mounting (optional)
- Power Supply: 10 ~ 30 Vdc, ATX mode
- Operating Temp.: 0 ~ +55˚C
- Humidity: 0 ~ 90%
- Dimensions (W x D x H): 230 x 206 x 82 mm
- Power Consumption: 110 W (with 4 GB DDRAM and 4 GB CFAST)
- Storage: One CFAST slot, two 2.5” SATA interfaces
- Random Vibration:
• Operating, 5 Grms, 5 ~ 500 Hz, 3 axes (w/CFAST or SSD) - Safety Compliance: CE/FCC, RoHS
OS Information
- Windows 7, Embedded Standard 7

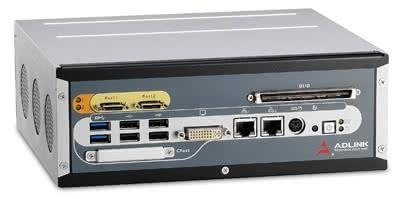

- EOS-4010/M4G/HDD500G - 2-CH PoCL embedded vision system equipped with Intel Core i7-3610QM 2.3 GHz processor and 4 GB RAM, and 500 GB HDD
- 32 GB SSD option - Factory-installation of 32 GB SATA solid state drive (0 to 70°C)
- 4 GB CFAST option - Factory-installed 4 GB CFAST card (0 to 70°C)
- 150 W AC adapter - 150 W industrial-grade AC adapter (-20 to 70°C)
- DIN rail kit - DIN rail mount kit
- COM port cable -DSUB 62-pin male to 4 DSUB 9-pin male cable
