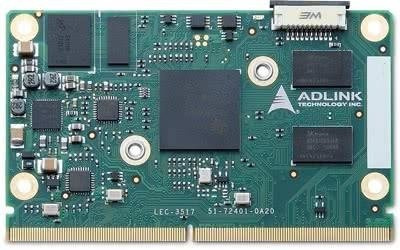

Moduł SMARC short size z procesorem TI Sitara AM3517 Cortex-A8 600 MHz, 256 MB DDR2 i 512 MB NAND Flash (-40 ~ +85°C)
Features
Features
- TI Sitara AM3517 Cortex-A8 Processor
- Robust, vibration resistant 314 pin MXM connector
- LCD display, serial and parallel camera input
- 720p, Multiple I2C, I2S and serial ports
- USB client/host mode operation
- Extreme Rugged operating temperature: -40 ~ +85ºC
- Core System
- CPU:
• TI Sitara AM3517 Cortex-A8 600MHz
• NEON SIMD co-processor and vector floating point co-processor
• PowerVR SGX530 graphics accelerator - Memory:
• 256 MB DDR2 SDRAM (166 MHz 16/32-bit mDDR/DDR2 Interface)
• 512 MB NAND flash - Video
- CPU:
• Video Processing Front End (VPFE) 16-bit
• Camera-in (8-bit)
• Supports YCbCr 4:2:2 format (8/16-bit with discrete horizontal and vertical sync) - Display
- Programmable display sizes: XGA, WXGA, SXGA+, 720p
- 24-bit RGB, color and monochrome displays up to 2048 x 2048 x 24bpp
- Audio
- Interface 3x I2S, audio codec on carrier board
- Media
- Interface:
• 1x USB Host; 1x USB Host/OTG
• SD/MMC 8-bit, SDIO 4-bit - Ethernet
- Chipset: SMSC LAN8710A-EZK PHY
- Interface: 10/100 BASE-T Ethernet controller
- I/O Interfaces
- GPIO:
• SPI 2x
• I2C 3x - UART:
• 2x 4-pin and 2x 2-pin
• 1x CAN bus - Timer
- 12x 32-bit general purpose timers
- 3x 32-bit watchdog timer
- 1x 32-bit 32-kHz sync timer
- Power
- Power: PMIC TPS650732
- Mechanical and Environmental
- Form Factor: SMARC Specification v1.0
- Dimensions: SMARC short size module, 82 x 50 mm
- Operating Temperature: Extreme Rugged: -40 ~ +85ºC
- Board Connector: MXM 314 pins
- Operating Systems
- Standard Support: Linux, Android, Windows CE, VxWorks
- LEC-3517 - SMARC Short Size Module with TI Sitara AM3517 Cortex-A8 600 MHz, 256 MB DDR2 SDRAM, 512 MB NAND Flash, 82 x 50 mm
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
