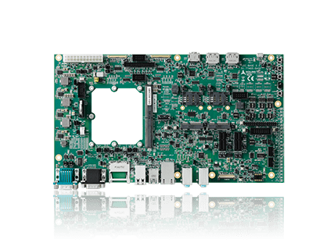

Płyta bazowa dla modułów SMARC
Features
Features
- SMARC compliant
- Audio codec
- GPS u-blox and G-sensor
- USB hub
- RGB to HDMI
- Compatible with both Short and Full size modules
- Interfaces
- Display:
• Combined HDMI, DP
• LVDS 18/24-bit or eDP
• Panel support signals (I2C, Power Enables, PWM)
• Combined HDMI, 18/24-bit RGB - Camera:
• Camera input 0: CSI-2
• Camera input 1: RGB or CSI-4 - SDIO:
• 4-bit SD/SDIO card interfaces
• 8-bit eMMC/SD/SDIO interfaces - SPI:
• Off module boot use (optional)
• G-sensor ADXL345 BCCZ
• 2x SPI interface - I2S:
• 3x I2S interface
- Audio codec TLV320AIC23BPW
- Line-in, Line-out, Mic
- Optional with HDA - I2C:
• 4x I2C
- Power Management
- HDMI
- Camera 0
- Camera 1 or GP - Asynchronous Serial Port:
• 4x asynchronous serial ports (UART)
- Two with 2 wire handshake (RXD, TXD, RTS#, CTS#)
- Two with data only (RXD, TXD)
- Logic level interface - CAN Bus:
• 1x CAN bus interface
- Logic level signals from Module based CAN bus protocol controllers
- RXD, TXD only - USB:
• 5x USB
- One with USB 2.0 OTG
- 4x USB 2.0 Host operation (full speed and high speed) - PCI Express:
• One PCIe x1 link
• PCIe Gen1 or Gen 2 (module dependent)
• Reference clock pair
• Full set of PCIe support signals
• May be configured as PCIe target if module chipset allows
• PCIe wake signal - SATA: One SATA with power interface
- Ethernet
- RJ-45 10/100/1000 Ethernet (by LAN transformer)
- S/PDIF
- S/PDIF out for audio
- Boot Source Select
- Module: SPI/eMMC/NOR/NAND
- Carrier: SPI/eMMC/SD Card/SATA
- DIP Switch (4)
- GPIO
- 12-pin header (including fan control and HDA reset)
- Alternate Function Blocks (AFB)
- Standard Module: AFB pins are reserved
- MOST Bus AFB
- Dual GBE AFB
- FieldBus AFB
- Mechanical and Environmental
- Dimension (L x W): 330 x 175 mm
- Board Connector: MXM 314 pins

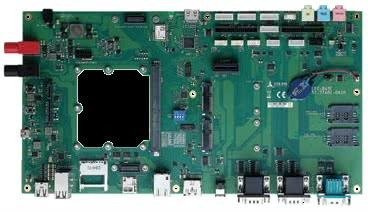

- LEC-BASE-R01 - SMARC Reference Carrier Board, MXM 314 pins, 330 x 175 mm
