Features
- USB 2.0, USB bus powered
- Programmable digital filter removes unexpected glitches from input channels
- Programmable DO/Relay initial status
- Up to 2500 Vrms isolation voltage
- Removable screw terminal on module
- Lockable USB cable for strong connectivity
- Ready-to-use testing application (U-Test) provided
- Optical Isolated Input
- Channels: 16
- Polarity: Bi-directional (non-polarity)
- Logic level:
VIH = 5 ~ 24 V,
VIL = 0 ~ 1.5 V or dry contact - Input resistance: 2.4k @ 0.5 W
- Isolated voltage: 2500 Vrms (channel to system)
- Min. pulse-width for change of state (COS) detection: 20.83 ns (software programmable)
- Optical Isolated Frequency/Event Counter
- Channels: 2
- Logic level:
VIH = 5 ~ 12 V,
VIL = 0 ~ 1.5 V - Event counter width: 32-bit
- Max. input frequency (DC coupled): 1 MHz
- Min. input frequency (DC coupled): 0.1 Hz
- Max. frequency error:
0.5% (f ≤ 50 kHz)
1% (50 kHz < f ≤ 500 kHz)
2% (500 kHz < f ≤ 1 MHz) - Optical Isolated Output
- Channels: 16
- Output type: Open drain MOSFET
- Supply voltage: 5 ~ 35 Vdc
- Max. sink current: 250 mA @ 100% duty (per channel)
- General Specifications
- Interface: High speed USB 2.0 compatible, mini-USB connector
- Data transfer: Programmed I/O
- Dimensions (L x W x H): 156.5 x 114 x 41.3 mm
- I/O Connector: Two 20-pin removable screw-down terminals
- Power requirement: USB power (5 V @ 400 mA)
- OS Information
- Windows 7/Vista/XP
- Software Compatibility
- LabVIEW
- MATLAB
- Visual Studio, Visual Studio.NET
- Software Recommendations
- U-Test
- DAQMaster

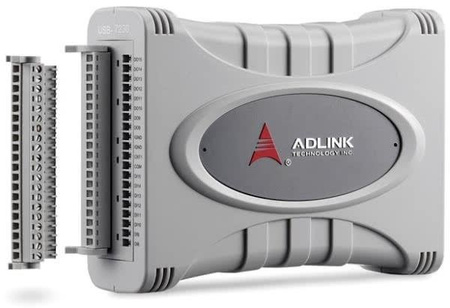

- USB-7230 - 32-CH isolated Digital I/O & 2-CH counter USB module
- RST-20P - One pair of 20-pin removable screw terminals
- USB-2M-L - 2 m USB Type A to USB Mini-B cable with lockable connector
