Features
- USB 2.0 high-speed function
- USB bus power
- Removable screw-down terminal module
- Lockable USB cable for secure connectivity
- 16-CH 250 kS/s voltage input
- 2-CH 1 MS/s voltage output
- Analog and Digital triggering
- Free testing application included (U-Test)
- Analog Input
- Resolution: 16-bit
- Number of channels: 16 SE / 8 Pseudo-diff, voltage input
- Maximum sampling rate (single channel): 250 kS/s(Multiplexing, channel-gain-queue)
- Programmable gain: 1, 5, 10, 50
- Input range (Voltage): ± 10 V, ± 2 V, ± 1 V, ± 200 mV
- Input range (Current): N/A
- Offset error: ± 0.1 mV (gain=1)
- Gain error: ± 0.05% of FSR (gain=1)
- -3dB small signal bandwidth (gain=1): 600 kHz
- CMRR (gain=1): 90 dB
- SFDR (gain=1): 108 dB
- SINAD (gain=1): 89 dB
- THD (gain=1): 102 dB
- SNR (gain=1): 89 dB
- ENOB (gain=1): 14.5-bit
- FIFO buffer size: 4 k samples
- Trigger sources: Software, external digital, analog trigger ( from one of analog input channels)
- Trigger mode: Post trigger, delay trigger, retrigger, gate trigger
- External conversion source: Yes (up to 250 kS/s)
- Input coupling: DC
- Overvoltage protection: Continuous ± 24 V
- Input impedance: High impedance > 1 GΩ
- Data transfer: Programmed I/O, continuous (USB bulk transfer mode)
- Analog Output
- Number of channels: 2 voltage outputs
- Resolution: 16-bit
- Maximum update rate: 1 MS/s (simultaneous update)
- Output range: ±10 V
- Offset error: ±0.15 mV
- Gain error: ±0.05% of FSR
- INL: ≤ 1 LSB
- DNL: < 1 LSB
- Output driving capacity: ± 5 mA
- Slew rate: 20 V/μs
- Settling time (0.1% of Full scale): 2.5 μs
- Rising time: 0.5 μs
- Falling time: 0.5 μs
- FIFO: 10 k samples (2-CH sharing)
- Output mode: Programmed I/O, continuous (USB bulk transfer mode)
- Funtion I/O
- Mode: Digital I/O, general timer/counter, pulse generation
• The function I/O share the same I/O pins.
• Only one of these modes can be selected. - Digital I/O: 8 DI / 4 DO
• TTL level - General timer/counter: Two 32-bit,
• base clock: 80 MHz,
• external to 10 MHz - Pulse generation: Four PWM outputs
• Modulation frequency: 0.01 Hz ~ 5 MHz;
• Duty cycle: 1 ~ 99% - General Specifications
- Interface: USB 2.0 high speed, mini-USB connector
- I/O connector: Two 20-pin screw terminals
- Operating temperature: 0 ~ +55°C
- Storage temperature: -20 ~ +70°C
- Relative humidity: 5 ~ 95% RH, non-condensing
- Power requirements: 5 V@400 mA (USB bus powered)
- Dimensions (W x D x H): 115 x 150 x 40 mm (without connector and stand)
- Operating Systems
- Windows 7/Vista/XP
- Driver Support
- UD-DASK for VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQPilot for Labview
- DAQ-MTLB for MATLAB

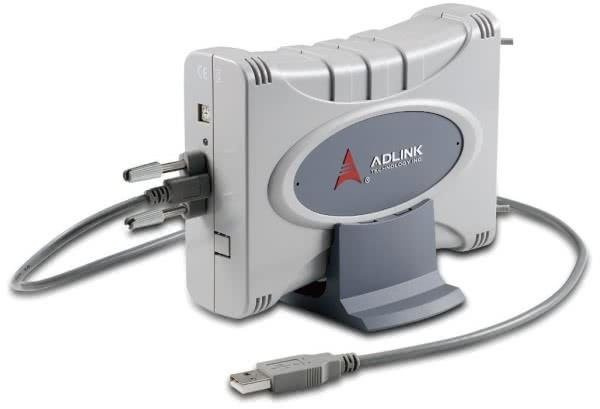

- USB-1902 - 16-CH 16-Bit 250kS/s Multi-Function USB DAQ
- One pair of 20-pin removable screw terminals
- 2 M USB Type A to USB Mini-B cable with lockable connector
- Module stand
- Rail-mount kit
- RST-20P - One pair of 20-pin removable screw terminals
- USB-2M-L - 2 M USB Type A to USB Mini-B cable with lockable connector
