Features
- PXI Express specification Rev. 1.0 compliant
- Up to 100 MS/s sampling rate
- High resolution 14-bit ADC
- Up to 100 MHz bandwidth for analog input
- 512 MB onboard storage memory
- Programmable input voltage range of ±0.2 V or ±2 V
- Scatter-Gather DMA data transfer for high speed data streaming
- One external digital trigger input
- Full auto-calibration
- Analog Input
- Number of Channels: 8 single-ended channel
- Input Coupling: AC or DC, software selectable
- Overvoltage Protection: ±5 V
- Offset Error: ±1 mV
- -3 dB Bandwidth: 100MHz
- Input Impedance: 50Ω or 1MΩ, software selectable
- Input Signal Range: ±0.2 V or ±2 V
- ADC Resolution: 14 bits, 1 in 16384
- Gain Error: ±0.5% of input
- Input Impedance: 50Ω or 1MΩ, software selectable
- Trigger
- Trigger Source:
• Software
• External digital
• PXI STAR
• PXI trigger bus [0..7] - Trigger Modes:
• Post-trigger
• Pre-trigger
• Middle trigger
• Delay trigger - External Digital Trigger Input:
• 5 V, 3.3 V TTL compatibility
• Rising edge or falling edge trigger condition, software programmable
• 20 ns minimum pulse width - Timebase
- Onboard oscillator sample clock source
- 100 MHz timebase frequency
- Data Storage and Transfer
- 512 MB onboard memory, shared among the eight analog inputs
- Scatter-Gather DMA data transfer
- Onboard Reference
- +2.000 V onboard reference voltage
- < 3.0 ppm/°C reference temperature drift
- 15 minutes recommended warmup
- General Specifications
- I/O Connector:
• Analog Inputs: SMB
• External Digital Input: SMB - Dimensions (not including connectors):160 W x 100 H mm
- Bus Interface:PCI Express Gen 1 x4
- Ambient Temperature (Operational):0°C to 55°C
- Ambient Temperature (Storage):-20°C to 80°C
- Relative Humidity:10% to 90%, non-condensing
- Certifications
- EMC/EMI: CE, FCC Class A
- Operating Systems
- Windows 2000/XP/Vista/7
- Recommended Application Environments
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- Driver Support
- WD-DASK for Windows
- DAQPilot for LabVIEW
- DAQPilot for Windows
- DAQ-MTLB for MATLAB

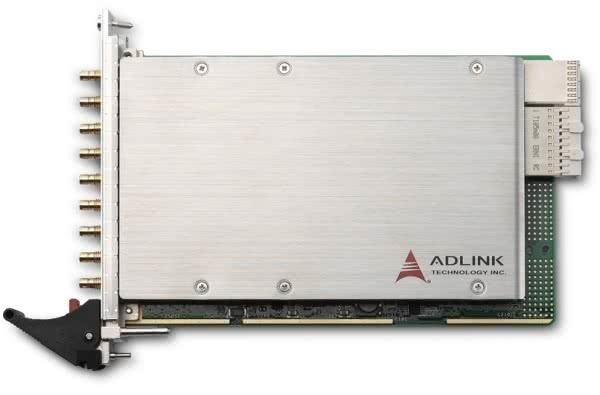

- PXIe-9848 - 8-CH 14-Bit 100 MS/s High-Speed PXI Express Digitizer
