Features
- x1 PCI Express interface
- 96-CH digital TTL/DTL inputs/outputs
- Emulates 4 industry standard 8255 PPI (mode 0)
- Direct interface with OPTO-22 compatible I/O modules
- Output status read back
- Onboard 8254 timer/counter chip
- One 32-bit timer for timed interrupt generation
- One 16-bit event counter to generate event interrupt
- Programmable interrupt sources
- +12 V and +5 V power available on OPTO-22 connectors
- Onboard resettable fuses for power output protection
- Compact, half-size PCB
- Digital I/O
- Number of channels: 96 inputs/outputs
- Compatibility: 5 V/TTL
- Digital logic levels:
Input high voltage: 2-5.25 V
Input low voltage: 0-0.8 V
Output high voltage: 2.4 V minimum
Output low voltage: 0.5 V maximum - Output driving capacity:
Source current:
2.6 mA for port A & B, and 15 mA for port C
Sink current: 24 mA - Data transfers: programmed I/O
- General Specifications
- I/O connector: 50-pin ribbon male x 4
- Operating temperature: 0 ~ +60ºC
- Storage temperature: -20 ~ +80ºC
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: 590 mA@12 Vdc Typical, 280 mA@ 3.3 Vdc Typical
- Dimensions (not including connectors): 168 x 112 mm
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

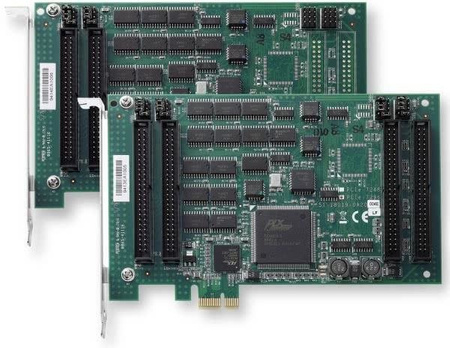

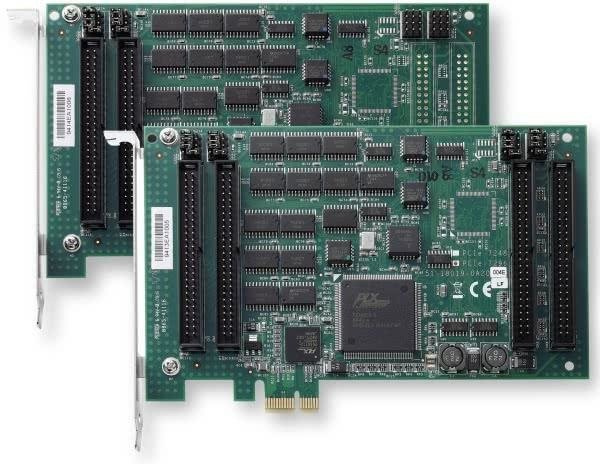

- PCIe-7296 - 96-CH Opto-22 Compatible PCIe DIO Card
- Terminal Boards
- TB-24R-01 - Terminal Board with 24-CH Relay Outputs (Cables are not included)
- TB-24P-01 - Terminal Board with 24-CH Isolated Digital Inputs (Cables are not included)
- TB-16P8R-01 - Terminal Board with 16-CH Isolated DI & 8-CH Relay Outputs (Cables are not included)
- DIN-24R-01 - Terminal Board with 24-CH Relay Outputs (Cables are not included)
- DIN-24P-01 - Terminal Board with 24-CH Isolated Digital Inputs and DIN-Rail Mounting (Cables are not included)
- Cable
- ACL-10150 - 50-pin flat cable
