Features
- x1 lane PCI Express Interface
- 16-CH isolated digital inputs & 16-CH isolated digital outputs
- 2500 Vrms optical isolation
- Sink current up to 500 mA on single isolated output
- Two external interrupt sources
- Compact, low-profile size PCB
- Isolated Digital Input
- Number of channels: 16
- Maximum input range: 24 V, non-polarity
- Digital logic levels: 0-24 V, non-polarity
Input high voltage: 5-24 V
Input low voltage: 0-1.5 V - Input resistance: 1.2 k @ 0.5 W
- Isolation voltage: 2500 Vrms
- Interrupt sources:
Digital input channel 0 and 1 - Data transfers: programmed I/O
- Isolated Digital Output
- Number of channels: 16
- Output type: Darlington transistor
- Sink current:
500 mA for one channel @ 100% duty
370 mA for all channels @ 10% duty
130 mA for all channels @ 50% duty - Power dissipation: Max. 1.47 W per chip (8 DO channels)
- Supply voltage: 5-35 Vdc
- Isolation voltage: 2500 Vrms
- Data transfers: programmed I/O
- General Specifications
- I/O connector: One 50-pin SCSI-II female
- Operating temperature: 0°C to 60 °C
- Storage temperature: -20°C to 80 °C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: +12 V @ 133 mA
- Dimensions (not including connectors): 119.9 mm(L) x 68.9 mm(H)
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Windows CE (call for availability)
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

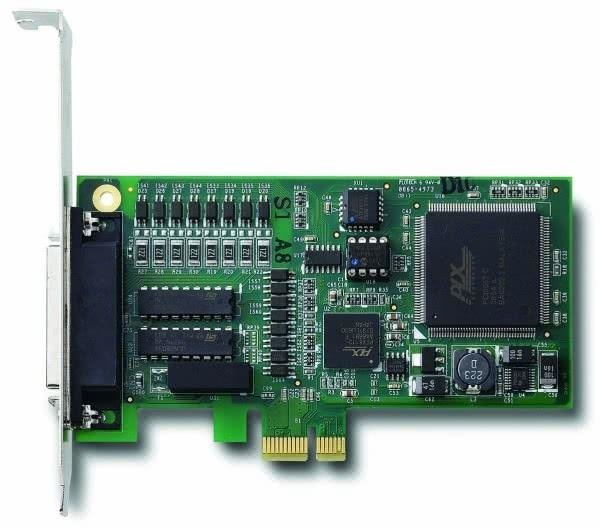

- LPCIe-7230 - 16-CH Isolated DI & 16-CH Isolated DO Low-Profile PCI Express Card
- Terminal Boards
- DIN-50S-01 - Terminal Board with One 50-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)
- Cable
- ACL-10250-1 - 50-pin SCSI-II cable (mating with AMP-787082-5), 1 M
