Features
- x1 lane PCI Express interface
- 32-CH TTL digital inputs and 32-CH TTL digital outputs
- Up to 12 MB/s transfer rate
- Bus-mastering DMA for both digital inputs and outputs
- Onboard programmable timer pacer clock
- Supports handshaking digital I/O transfer mode
- Multiple programmable interrupt sources
- 5 V power available on connectors
- Compact, half-size PCB
- Digital I/O
- Number of channels:
32-CH digital inputs
32-CH digital outputs - Compatibility: 5 V/TTL
- Data transfer rate:
12 MB/s with external 3 MHz clock, handshaking or external strobe
8 MB/s with internal 2 MHz timer pacer - Digital logic levels:
Input high voltage: 2-5.25 V
Input low voltage: 0-0.8 V
Output high voltage: 2.7 V minimum
Output low voltage: 0.5 V maximum - Output driving capacity:
Source current: 3.0 mA
Sink current: 24 mA - Data transfers: programmed I/O, interrupt, bus-mastering DMA
- Programmable Counter
- Base clock: 4 MHz
- Timer 0: DI clock source
- Timer 1: DO clock source
- Timer 2: Base clock source of timer 0 & 1
- Interrupt
- Sources: EO_ACK, EI_REQ, Timer 0, Timer 1 or Timer 2
- General
- I/O connector:
37-pin D-sub female
40-pin Header - Operating temperature: 0˚C to 60˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: +3.3 V 500 mA typical, +12 V 200 mA typical
- Dimensions (not including connectors): 148 mm x 102 mm
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

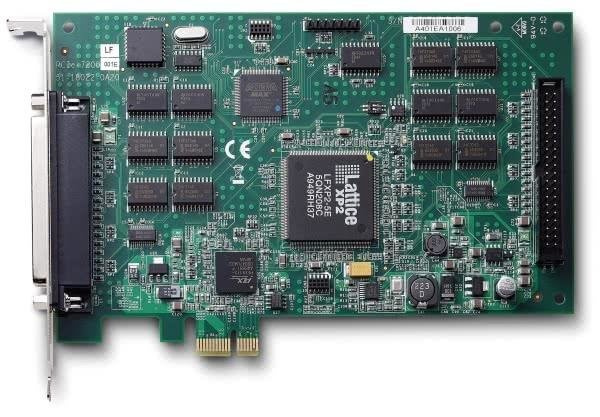

- PCIe-7200 - 12 MB/s High-Speed 32-CH DI & 32-CH DO PCI Express card
- Terminal Boards
- DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included.)
- ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector (Cables are not included.)
- ACLD-9137F-01 - General-Purpose Terminal Board with One 37-pin D-sub Female Connector (Cables are not included.)
- Cables
- ACL-10137-1MM - 37-Pin D-Sub M/M cable, 1M (DIN-37D-01, ACLD-9137F-01)
- ACL-10137-1MF - 37-Pin D-Sub M/F cable, 1M (ACLD-9137-01)
