Features
- x 4 lane PCI Express Interface
- 8/16/24/32-CH at up to100 MHz for DI or DO
- 8/16-CH at up to 200 MHz for DI in external clock mode
- 400 MB/s maximum throughput
- Voltage level software selectable from 1.8, 2.5 and 3.3 V
- 80-step phase shift in external clock mode
- Per group (8-bit) input/output direction selectable
- Support for I2C and SPI programmable serial interfaces for external device communication
- Scatter-gather DMA support
- Flexible handshake and external digital trigger modes
- 8-channel auxiliary programmable I/O
- Digital I/O
- 32-channels, per group (8-channel) input/output direction, with selectable logic levels: 1.8, 2.5 and 3.3 V (software selectable)
- Power-up status: All digital inputs
- Impedance:
Input: 10 kΩ
Output: 50 Ω - Input protection: -1 to 6 V
- Data transfer: Programmable I/O, bus-mastering DMA with scatter-gather
- Maximum data transfer rate: 400 MB/s
- Digital logic levels:
• @ 1.8 V: DIH min = 1.2 V, DIL max = 0.63 V, DOH min = 1.6 V, DOL max = 0.2 V
• @ 2.5 V: DIH min = 1.6 V, DIL max = 0.70 V, DOH min = 2.3 V, DOL max = 0.2 V
• @ 3.3 V: DIH min = 2.0 V, DIL max = 0.80 V, DOH min = 3.1 V, DOL max = 0.2 V - Clocking Mode
- Internal clock: up to 100 MHz (100 MHz / N; 1
- External clock: up to 100 MHz (support 8/16/24/32-bit data width for DI/DO); up to 200 MHz
(support 8/16-bit data width for DI only)- Handshake
- Burst handshake
- External clock: up to 100 MHz (support 8/16/24/32-bit data width for DI/DO); up to 200 MHz
- Trigger Sources
- Software trigger
- External digital trigger: AFI[0…7]
- Trigger Modes
- Post trigger, Retrigger, Pattern match, Handshake
- Change of State Interrupt
- Interrupt sources: Any of 32 channels or a pre-define channel change-of-state
- Application Function I/O
- 8 channels
- Supported modes: static I/O, I2C or SPI master node, external clock input/output, external digital trigger input, handshake
- OS Information
- Windows XP, Windows 7/8 x64/x86, Linux
- Software Compatibility
- LabVIEW, MATLAB, Visual Studio.NET

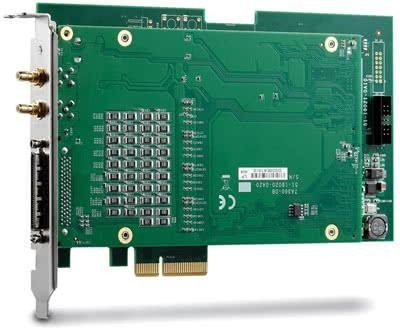

- PCIe-7360 - 100 MHz 32-CH High-Speed Digital I/O PCI Express Card
- DIN-68H-01 - Terminal board with one 68-pin SCSI-VHDCI connector and 0 or 50 Ω jumper selectable impedance (Cables are not included.)
- ACL-10279 - 68-pin SCSI-VHDCI cable with 50 Ω impedance
- SMB-SMB-1M - SMB to SMB cable, 1M
