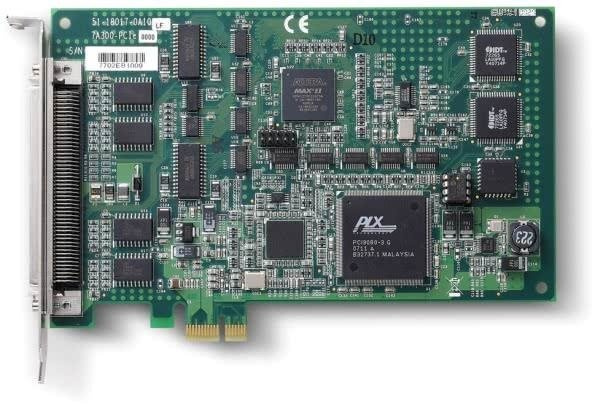

PCIe-7300A

PCIe-7300A to karta 2 x 16 wejść-wyjść cyfrowych 80 MB/sek oraz 4 wejścia i 4 wyjścia cyfrowe 500 kHz na szynę PCIe x1

Features

• x1 lane PCI Express Interface
• 32-CH 5 V/TTL digital inputs/outputs
• 20 MHz (80 MB/s) maximum transfer rate
• 8, 16, or 32-bit transfers
• 4 auxiliary DI & 4 auxiliary DO
• Onboard 64 kB FIFO
• Onboard programmable timer pacer clock
• Timed digital input sampling controlled by internal timer or external clock
• Independent trigger signals to start data acquisition and pattern generation
• Scatter-gather DMA
• Supports handshaking digital I/O transfer mode
• Repeated digital pattern generation from FIFO
• Active terminators for high-speed and long distance data transfer

Specifications

• Digital I/O

• Numbers of channel (Software configurable)
  16 DI & 16 DO
  32 DI
  32 DO
• Compatibility: 5 V/TTL
• Digital logic levels
  Input high voltage: 2-5.25 V
  Input low voltage: 0-0.8 V
  Output high voltage: 2.7 V minimum
  Output low voltage: 0.5 V maximum
• Input load

• Terminator OFF
  Input high current: 1 mA
  Input low current: 20 mA

• Terminator ON
  Termination resistor: 111 Ω
  Termination voltage: 2.9 V
  Input high current: 1 mA
  Input low current: 22.4 mA

• Output driving capacity
  Source current: 8 mA
  Sink current: 48 mA

• Transfer characteristics

• Data transfers: Bus-mastering DMA with Scatter/Gather
• Data width: 32/16/8 bits (programmable)

• Data transfer count

• 2 M double words (8 MB) for non-chaining mode DMA
• No limitation for chaining mode (scatter/gather) DMA

• Max transfer rate

• DO: 80 MBytes/s, 32-bit output @ 20 MHz
• DI: 80 MBytes/s, 32-bit input @ 20 MHz

• Trigger

• DI_TRG for digital inputs,
• DO_TRG for digital outputs
• Compatibility: 5 V/TTL
• Trigger types: rising or falling edges
• Minimum pulse width: 32 ns

• Clocking mode

• Internal clock
  Internal clock sources: 20 MHz, 10 MHz, Timer#0 output (digital input pacer)
  and Timer #1 output (digital output pacer)
• External clock up to 40 MHz
• Handshaking
• Burst handshaking

• Programmable counter

• Base clock: 10 MHz
• Timer #0 as digital input pacer
• Timer #1 as digital output pacer
• Timer #2: as interrupt source

• Auxiliary digital I/O

• Number of channels
  4-CH digital inputs
  4-CH digital outputs
• Compatibility: 5 V/TTL
• Data transfers: programmed I/O

• General

• I/O connector: One 100-pin SCSI-II female
• Operating temperature: 0 ˚Cto 60˚C
• Storage temperature: -20˚C to 80˚C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements:
  onboard terminator off: +3.3 V 499 mA typical, +12 V 119 mA typical
  onboard terminator on: +3.3 V 543 mA typical, +12 V 287 mA typical
• Dimensions (not including connectors): 168 mm x 112 mm

Software Support

• Operating Systems

• Windows 7/Vista/XP/2000/2003 Server
• Linux

• Recommended Software

• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench

• Driver Support

• DAQPilot for Windows
• DAQPilot for LabVIEW
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCIe-7300A - 80 MB/S High-Speed 32-CH Digital I/O PCIe Card

Accessories

• Terminal Boards

• DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)

• Cables

• ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787082-9), 1 m (DIN-100S-01)
