Features
- Up to 1 MHz from encoder signals of the master axis
- Supports OUT/DIR and CW/CCW pulse output mode
- Supports 4 x AB phase and CW/CCW pulse input mode
- Programmable interrupt
- CAM table setting by API function
- ECAM Controller
- D-Sub 9 and 25 bracket required when using the DB-8152
- D-Sub 25 for master encoder and slave encoder, pulse out and DIO with isolation
- D-Sub 9 for CMP output with 2 high speed and 6 general speed
- Dimension 96.42 (L) x 62 (W) mm
- Operating Temperature 0˚C to +60˚C
- Storage Temperature -20˚C to +80˚C
- Power Consumption +3.3 V @ 200 mA typical, +5 V @ 100 mA typical

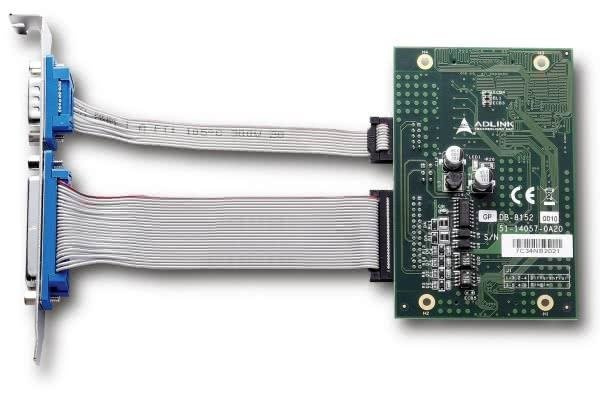

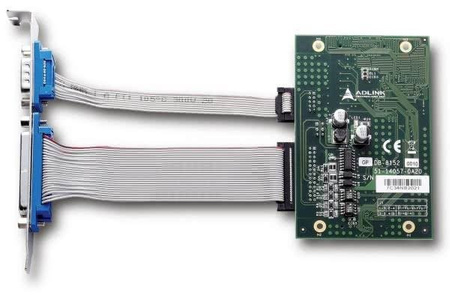

- DB-8152 - Electronic CAM slave motion solution daughter board for PCI-8158/PCI-8154
