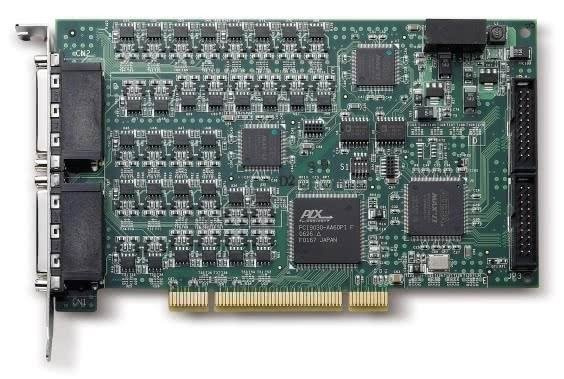

PCI-7444

Features

• Supports universal 32-bit 3.3 V and 5 V PCI bus, Plug-and-Play
• High-density, opto-isolated 128-CH digital output
• 1250 Vrms isolation voltage
• Up to 300 mA high-output driving capability for all output channels
• 250 mA sink current on isolated output channels
• Digital output status read back function
• Digital output value retained after hot system reset
• Programmable power-up DO initial status
• Programmable safety DO status functions when WDT interruption occurs
• Board ID feature

Specifications

• Isolated Digital Output


• Number of channels: 128
• Output type: open drain Power MOSFET driver
• Output range: 5 V to 40 V
• Sink current: 250 mA for all channel @ 100% duty (300 mA max.)
• Isolation voltage: 1250 Vrms channel-to-system
• Data transfer: programmed I/O


• Isolation +5 V Power Supply


• Output Voltage: +5 V
• Output Current: 100 mA max. (@ 40˚C)


• Safety Functions


• Programmable power-up DO status
• Watchdog timer
• Base clock available: 10 MHz, fixed
• Counter width: 32-bit


• General Specifications


• I/O connector: 68-pin Dual port VHDCI female
• Operating temperature: 0˚C to 60˚C
• Storage temperature: -20˚C to 80˚C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: +5V 800 mA typical
• Dimension: 175 mm x 107 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-7444 - 128-CH Isolated DO card

Accessories

• Terminal Boards


• DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)


• Cable


• ACL-10568D - Dual-68-Pin Head to Two 68-Pin SCSI-VHDCI Cable


• ACL-10568F - 68-Pin SCSI-VHDCI Flat Cable
