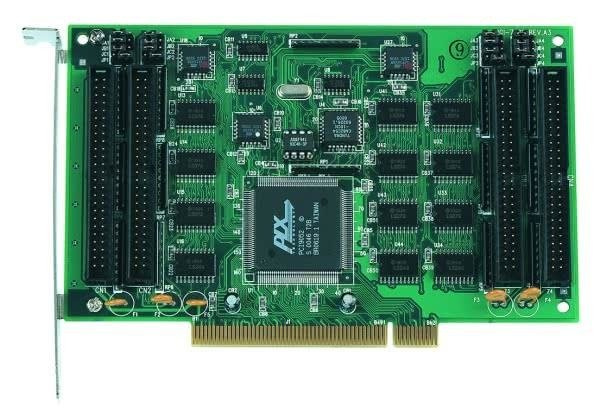

PCI-7296

Features

• Supports a 32-bit 5 V PCI bus
• 96-CH digital TTL/DTL inputs/outputs
• Emulates 4 industry standard 8255 PPI (mode 0)
• Direct interface with OPTO-22 compatible I/O modules
• Output status read back
• Onboard 8254 timer/counter chip
• One 32-bit timer for timed interrupt generation
• One 16-bit event counter to generate event interrupt
• Programmable interrupt sources
• +12 V and +5 V power available on OPTO-22 connectors
• Onboard resettable fuses for power output protection
• Compact, half-size PCB

Specifications

• Digital I/O


• Number of channels: 96 inputs/outputs
• Compatibility: 5 V/TTL
• Digital logic levels:
  Input high voltage: 2-5.25 V
  Input low voltage: 0-0.8 V
  Output high voltage: 2.4 V minimum
  Output low voltage: 0.5 V maximum
• Output driving capacity:
  Source current:
  2.6 mA for port A & B, and 15 mA for port C
  Sink current: 24 mA
• Data transfers: programmed I/O


• General Specifications


• I/O connector: 50-pin ribbon male x 4
• Operating temperature: 0ºC to 60ºC
• Storage temperature: -20ºC to 80ºC
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: 860 mA @ 5 Vdc Typical
• Dimensions (not including connectors): 166 mm x 102 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-7296 - 96-CH Opto-22 Compatible DIO Card

Accessories

• Terminal Boards


• TB-24R-01 - Terminal Board with 24-CH Relay Outputs (Cables are not included)


• TB-24P-01 - Terminal Board with 24-CH Isolated Digital Inputs (Cables are not included)


• TB-16P8R-01 - Terminal Board with 16-CH Isolated DI & 8-CH Relay Outputs (Cables are not included)


• DIN-24R-01 - Terminal Board with 24-CH Relay Outputs (Cables are not included)


• DIN-24P-01 - Terminal Board with 24-CH Isolated Digital Inputs and DIN-Rail Mounting (Cables are not included)


• Cable


• ACL-10150 - 50-pin flat cable
