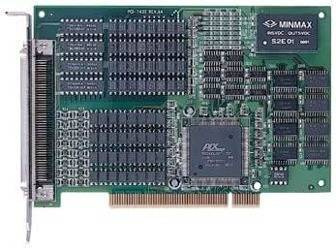

PCI-7432HIR

Features

• Supports a 32-bit 5 V PCI bus
• 32-CH isolated digital inputs & 32-CH isolated digital outputs
• Isolation Voltage: 2500 Vrms
• Sink current up to 500 mA on single isolated output
• Isolated input voltage up to 50 V
• Two external interrupt sources

Specifications

• Isolated Digital Input


• Number of channels: 32
• Maximum input range (Non-polarity): 50 V, non-polarity
• Digital logic levels: 0 V to 50 V, non-polarity
  Input high voltage: 10 V to 50 V
  Input low voltage: 0 V to 2 V
• Input resistance: 4.7 kΩ @ 0.5 W
• Isolation voltage: 2500 Vrms
• Interrupt sources: digital input channel 0 & 1
• Data transfers: programmed I/O


• Isolated Digital Output


• Number of channels: 32
• Output type: open collector Darlington transistor
  Sink current:
  500 mA for single channel @ 100% duty cycle
  500 mA for all channels @ 20% duty cycle
• Power dissipation: Max. 2.25 W per chip (8 DO channels)
• Supply voltage: 5-35 V
• Isolation voltage: 2500 Vrms
• Data transfers: programmed I/O


• General Specifications


• I/O connector: 100-pin SCSI-II female
• Operating temperature: 0˚C to 60 ˚C
• Storage temperature: -20˚C to 80 ˚C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: +5 V 530 mA typical
• Dimensions (not including connectors): 156 mm x 106 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-7432HIR - 32-CH Isolated DI & 32-CH Isolated DO Card with High Input Range

Accessories

• Terminal Boards


• DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)


• Cable


• ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787882-9), 1 M
