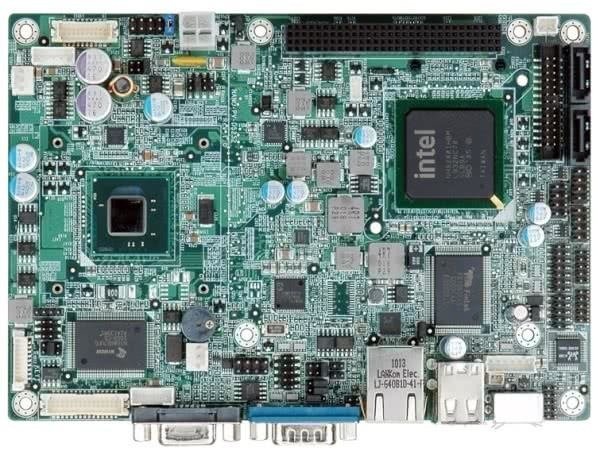

Name: NANO-PV-D4252
Brand: IEI Integration Corp.

Features

Specifications

CPU: Intel Atom D425 single-core processor 1.8 GHz/512 KB L2 cache
Chipset: Intel ICH8M
BIOS: UEFI BIOS
Memory: One 204-pin 800 MHz DDR3 SDRAM SO-DIMM supported (system max. 2 GB)
Graphic: GMA 3150
Graphic core speed 400 MHz
Display Out:
Analog CRT up to 2048x1536, support for CRT hot-plug
18-bit single-channel LVDS, resolution support up to 1366x768
18/24-bit single/dual-channel LVDS by Novatek NT68667UFG
resolution support up to 800x600, 1024x768, 1280x1024, 1366 x768, 1920x1080
LAN: Realtek RTL8111E PCIe GbE controller with ASF2.0 support
Super IO: Fintek F81865
I/O Interface:
4 x RS-232
1 x RS-232/422/485 (COM3) with Auto Flow control
1 x LPT
2 x KB/MS
1 x CF Type II
2 x SATA 3 Gb/s
8 x USB 2.0
Audio: Realtek ALC888 HD codec
Expansion:
1 x PCI-104 slot
1 x PCIe Mini card slot (PCIe + USB + SATA signal) support IEI mini DOM
TPM: -
Watchdog Timer: Software programmable supports 1~255 sec. system reset by Super I/O
Digital I/O: 8-bit digital I/O, 4-bit input / 4-bit ouput
FAN Connector:
1 x 3-pin CPU fan
1 x 3-pin system fan
Power supply: 12 V only, AT/ATX support
Power Consumption:
2.08 A@12 V (Intel Atom D425 with 2 GB 1066 MHz DDR3)
Temperature:
-20°C ~ 65°C with free air,
-20°C ~ 70°C with force air
Humidity: Operation: 5% ~ 95% non-condensing
Weight: GW: 650 g / NW: 340 g
