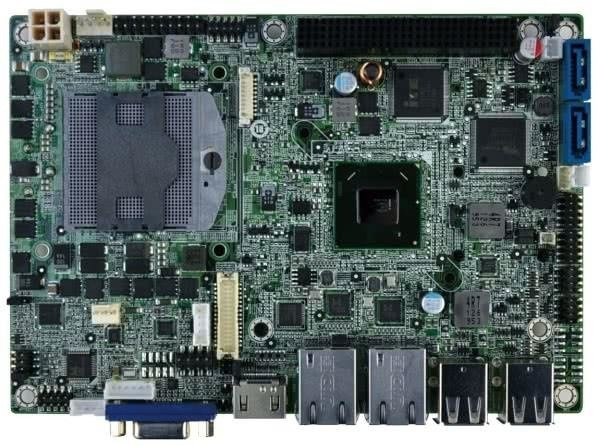

Name: NANO-HM650
Brand: IEI Integration Corp.

Features

EPIC SBC with Socket G2 for Intel 2nd generation Core i7/i5/i3 and Celeron processor
VGA/24-bit dual-channel LVDS/HDMI for dual display support
1066/1333 MHz DDR3 SDRAM supported (system max. 8 GB)
Supports three COM, eight USB 2.0, two SATA 6 Gb/s, PCI-104 and audio
TPM V1.2 hardware security function supported by TPM module
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: Socket G2 for 2nd generation Intel Core i7/i5/i3 and Celeron mobile processor
PCH: Intel HM65
BIOS: UEFI BIOS
Memory: One 204-pin 1066/1333 MHz DDR3 SO-DIMM supported
(system max. 8 GB)
Display Output:
Dual display supported
1 x VGA (up to 2048 x 1536 @75 Hz)
1 x HDMI (up to 1920 x 1200 @60 Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920 x 1200 @60 Hz)
Ethernet: Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support
I/O Interface:
2 x RS-232
1 x RS-422/485
8 x USB 2.0
1 x 6-pin header for KB/MS
2 x SATA 6 Gb/s with 5 V SATA power connector
Super I/O: Fintek F81866
Audio: Realtek ALC662 HD audio codec
Expansions:
1 x PCIe Mini card slot
1 x PCI-104 slot (PCI signal)
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Programmable GPIO: 8-bit digital I/O (4-bit input / 4-bit output)
Fan Connector:
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
Power Supply: 12V only, AT/ATX support
Power Consumption: 12 V@4.85 A
(2.6 GHz Intel Core i5-2540M with 1333 MHz 4 GB DDR3 memory)
Operating Temperature: -10 ~ +60°C
Operating Humidity: 5 ~ 95%, non-condensing
Dimensions: 115 x 165 mm
Weight: GW: 850 g/NW: 350 g

Ordering Information

NANO-HM650-R10 - EPIC SBC supports Socket G2 for Intel 2nd generation Core i7/i5/i3 and Celeron CPU, VGA/HDMI, USB 2.0, dual PCIe GbE, PCI-104, SATA 6 Gb/s and Audio
