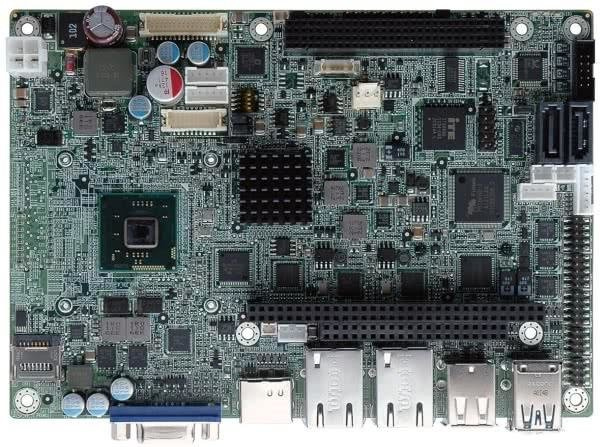

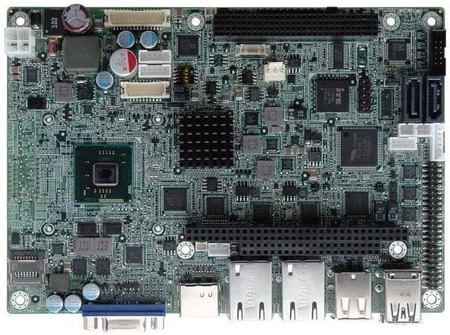

Name: NANO-CV-N28001
Brand: IEI Integration Corp.

Features

EPIC form factor with Intel N2800 dual-core proccessor supporting DDR3/DDR3L (1.35 V) memory
Wide range 9 ~ 28 Vdc input design
Flexible VGA, dual LVDS and HDMI with dual-display support
Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage
Complete I/O with six USB, two SATA 3 Gb/s, four COM and audio
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: Intel dual core Atom N2800 1.86 GHz processor (optional)
Chipset: Intel NM10
BIOS: UEFI BIOS
Memory: 1 x 1066 MHz DDR3 SO-DIMM supporting up to 4 GB
Graphics: GMA 3650 at 640 MHz graphics core speed
Display Output:
Dual display supported
1 x VGA (up to 1920 x 1200 @60 Hz)
1 x HDMI (up to 1920 x 1200 @60 Hz)
LVDS1 integrated in the N2800
Single-channel 18-bit LVDS, resolution support up to 1366x768 @60 Hz
LVDS2 supports 24-bit dual-channel by CH7511 DP to LVDS converter,
resolution support up to 1600x1200
Ethernet: Dual GbE by Realtek RTL8111E controllers
I/O Interface:
3 x RS-232
1 x RS-422/485
4 x USB 2.0
1 x microSD (Only for boot up to DOS)
2 x USB 3.0
1 x 6-pin wafer for PS/2 KB/MS
2 x SATA 3 Gb/s with 5 V power connector (SATA1 and mSATA shares SATA signal)
Audio: Realtek ALC662 HD audio codec
Expansions:
1 x PCIe Mini card (compatible with mSATA SSD device) (SATA1 and mSATA shares SATA signal)
1 x PC/104 slot (ISA)
1 x PCI/104 slot (PCI)
SMBus: 1 x 4-pin wafer connector
TPM: 1 x 20-pin LPC pin header
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Programmable GPIO: 8-bit GPIO
Fan Connector:
1 x 3-pin CPU fan connector
1 x 3-pin system fan connector
Power supply:
Maximum input voltage range: 9 ~ 28 V
Recommended operating input voltage range: 12 ~ 24 V
One internal 4-pin (2x2) power connector
Power Consumption:
12 V@1.72 A (Intel N2800 1.6 GHz CPU with 1333 MHz 2 GB DDR3 memory)
Operating Temperature:
-20 ~ +70°C with free air,
-20 ~ +75°C with force air
Operating Humidity: 5 ~ 95%, non-condensing
Weight: GW: 670 g/NW: 350 g

Ordering Information

NANO-CV-N28001-R10 - EPIC SBC with Intel Atom N2800 1.86 GHz, DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3 Gb/s, Audio and RoHS (by project support, MOQ 100 pcs / lot)
