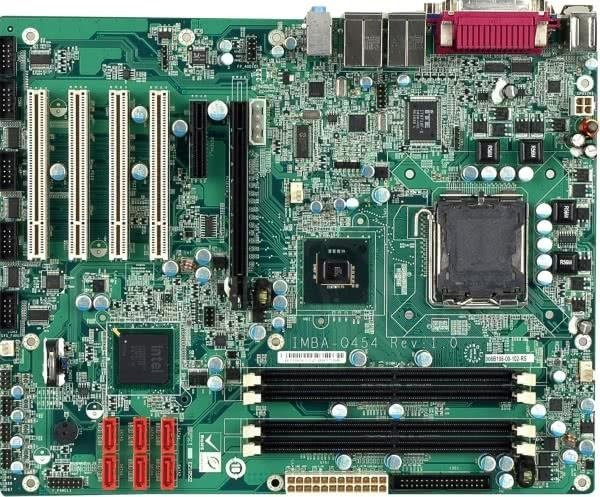

Name: IMBA-Q454
Brand: IEI Integration Corp.

Features

Designed for Intel Core2 Quad/Duo processor Q9000/E8000/E7000 series in the LGA775 with a 1333/1066/800 MHz FSB
Intel GbE LAN with Intel AMT 5.0 supported
Q45 chipset integrated high performance graphic with DX10 and OpenGL 2.1 supported, external graphic card PCIe 2.0 PEG 1X16 supported
PCIe x16 expansion slot and VGA output for dual display support
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: LGA 775 45nm Intel Core 2 Duo/Quad, Celeron CPU with a 1333/1066 / 800 MHz FSB
System Chipset: Intel Q45 + Intel ICH10DO
BIOS: AMI BIOS
System Memory: Four 240-pin 800/667 MHz dual-channel DDR2 SDRAM DIMM support Up to 16 GB
Ethernet Chipset:
LAN 1: Intel 82567LM (Intel AMT 5.0 supported)
LAN 2: Intel 82574L
IO Interface:
6 x RS-232
1 x VGA
1 x LPT
2 x RJ-45
12 x USB2.0
2 x PS/2 for KB & MS
1 x Audio jack for line in/line out/mic in
Expansion:
One PCIe x16
One PCIe x4
Four PCI
Graphics Integrated:
Intel GMA 4500 support for Microsoft DirectX* 10,
Shader Model 4.0 and OpenGL* 2.0
Display Output:
Analog CRT and PEG x 16
Super IO: ITE IT8718F
Digital I/O: 8-bit (4-bit input / 4-bit output)
Storage:
1 x FDD
6 x SATA 3 Gb/s (with RAID 0, 1, 5, 10 function)
Audio: Realtek ALC888
TPM: iTPM1.2
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Power Supply: ATX supported
Fan connector:
1 x 4-pin CPU fan
1 x 4-pin chipset fan
1 x 3-pin system fan
Power Consumption: 3.3 V@2.64 A, 5 V@5.4 A, 12 V@0.28 A
(Intel Core 2 Duo E8500 3.16 GHz with DDR2 800 MHz 2 GB x 4)
Temperature: Operation: 0 ~ +60°C (32 ~ 140°F)
Humidity: Operation: 5% ~ 95%, non-condensing
Dimensions: 305 x 244 mm
Weight: GW: 1200 g / NW: 600 g

Ordering Information

IMBA-Q454-R10 - ATX motherboard supports 45nm Core 2 Duo/ Quad with a 1333/1066/800 MHz FSB, Intel Q45 & ICH10DO platform, dual Intel GbE, six SATA 3Gb/s with RAID, six COM ports, USB and audio
