Features
- Intel Core2 Duo, Pentium D, Pentium 4, Celeron D processor in the LGA 775 package
- Integrated Intel GMA950 graphic engine that offers adequate display quality via VGA interface
- Dual-channel DDR2 400/533/667 MHz SDRAM socket supports up to 4 GB
- TPM V1.2 hardware security function supported
- Four SATA 3Gb/s, eight USB 2.0, audio and ATX power only
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA 775 Intel Core2 Duo, Pentium 4/Celeron D processor, FSB 533/800/1066 MHz
- System Chipset: Intel 945G + ICH7
- BIOS: AMI BIOS
- System Memory: 4 x 240-pin dual-channel DDR2 400/533/667 MHz up to 4 GB
- Ethernet: Dual PCIe Realtek RTL8111E GbE chipsets
- I/O Interface:
8 x USB 2.0
4 x SATA 3 Gb/s
1 x LPT
1 x FDD
2 x PS/2 for KB/MS
1 x IDE
5 x RS-232
1 x RS-232/422/485
1 x CF Type II
1 x 20-pin LPC for TPM - Expansions:
One PCIe x16 (Support PCIe x1/ x16 PCIe add-on cards)
6 x PCI - Infrared Interface: 1 x Infrared interface by pin header
- Super I/O: ITE IT8712F
- Digital I/O: 8-bit digital I/O, 4-bit input/ 4-bit output
- Audio: Realtek ALC655 with AC'97 codec
- Display: VGA integrated in Intel 945G
- Watchdog Timer: Software programable 1-255 sec. system reset.
- Power Supply: ATX support
- Power Consumption: 5 V@2.86 A, 12 V@0.39 A, 3.3 V@6.24 A, Vcore@1.05 A
(Intel Core 2 Duo E7400 2.8 GHz/ 1066 MHz CPU with 2 x 2GB DDR2 800 MHz) - Temperature: Operating: 0 ~ +60°C (32 ~ 140° F)
- Humidity: Operating: 5% ~ 95% non-condensing
- Dimensions: 305 x 244 mm
- Weight: GW: 1200 g / NW: 650 g

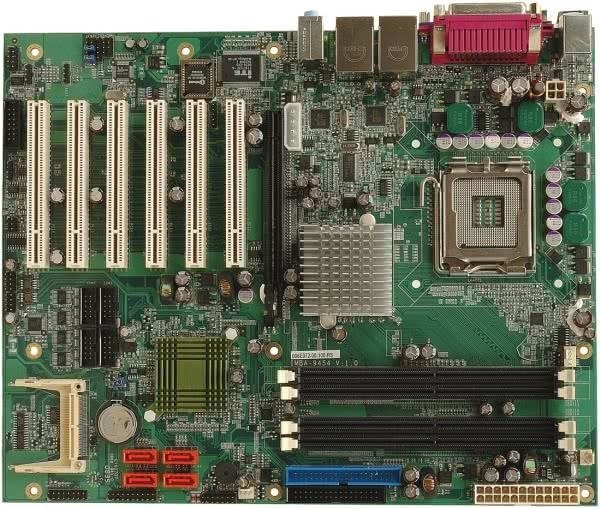

- IMBA-9454G-R40 - ATX motherboard with Intel LGA 775 Core2 Duo, Pentium D/ Pentium 4/ Celeron D Processor FSB 533/800/1066MHz, PCIe GbE, SATA 3Gb/s and Audio
- 32200-000017-RS - FDD cable
- CB-USB02-RS - Dual USB cable
- 19800-000100-200-RS - Four USB cable
- 32200-000063-RS - RS-232/422/485 cable
- CF-775A-RS - CPU cooler
- CF-520-RS-R11 - CPU cooler
- TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17
- SDVO-100VGA-R10 - PCIe x16 VGA output SDVO card supports dual display (IEI CPU board only)
- SDVO-100DVI-R10 - PCIe x16 DVI output SDVO card supports dual display (IEI CPU board only)
