Features
- LGA1155 Intel Core i7/i5/i3/Pentium/Celeron processor supported
- Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM
- Intel PCIe GbE with Intel AMT 7.0 supported
- USB 3.0 and SATA 6 Gb/s supported
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA1155 socket supports Intel Core i7/i5/i3/Pentium/Celeron processor
- System Chipset: Intel Q67
- Memory: Four 240-pin 1333/1066 MHz dual-channel unbuffered DDR3 SDRAM DIMM supported
(system max. 32 GB) - BIOS: UEFI BIOS
- Ethernet:
Intel 82583V PCIe controller
Intel 82579 PHY with Intel AMT 7.0 support (LAN2) - Graphics Engine:
Support for DX10.1 and OpenGL3.0
Full MPEG2, VC1, AVC Decode - Display Output:
VGA integrated in Intel Q67
HDMI integrated in Intel Q67
DVI-D integrated in Intel Q67 - Super I/O: Fintek F81866
- Audio: Realtek ALC888 HD Audio codec (Line-in, Line-out, Mic)
- I/O Interface:
5 x RS-232
1 x RS-422/485
1 x LPT
2 x SATA 6 Gb/s with RAID 0/1/5/10 support
4 x SATA 3 Gb/s with RAID 0/1/5/10 support
2 x USB 3.0 by NEC D720200F1
10 x USB 2.0 (2 by Rear IO, 8 by pin header)
1 x PS/2 KB/MS - Front Audio: 1 x 10-pin header
- TPM: 1 x 20-pin header
- SMBus: 1 x 4-pin wafer
- I2C: 1 x 4-pin wafer
- Expansion:
1 x PCIe x16 slot
1 x PCIe x4 slot
1 x PCIe x1 slot
4 x PCI slots - Watchdog Timer: Software programmable support 1~255 sec. system reset
- Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
- Fan connector:
1 x 4-pin CPU fan connector
2 x 3-pin system fan connector - Power Supply: ATX/AT power supply
- Power Consumption: 3.3 V@1.65 A, 5 V@6.31 A , 12 V@0.18 A, Vcore@7.88 A, 5 VSb@0.15 A
(Intel Core i5-2400 3.10GHz CPU with four 4 GB 1333MHz DDR3 memory) - Operating Temperature: -10 ~ +60°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 244 x 305 mm
- Weight: GW:1200 g, NW: 700 g

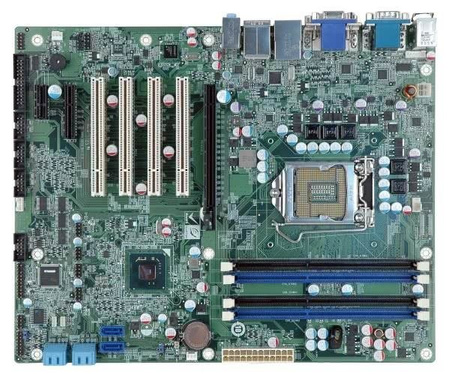

- IMBA-Q670-R30 - ATX motherboard supports LGA1155 Intel Core i7/i5/i3/Pentium/Celeron CPU with Intel Q67, DDR3, VGA/DVI-D/HDMI, dual Intel PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
- 19800-003100-100-RS - Dual-port USB cable with bracket
- 32102-000100-200-RS - SATA power cable
- 32200-074800-RS - RS-422/485 cable, 200 mm
- 19800-000049-RS - LPT cable
- 19800-000051-RS - RS-232 cable, 230 mm
- TPM-IN01-R11 - 20-pin Infi neon TPM module, software management tool, firmware V3.17
- CPU-DT-i5-2500T - Intel Core i5-2500T processor, LGA1155, Quad core 2.3 GHz, 6 M Cache, 45 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-i5-2390T - Intel Core i5-2390T processor, LGA1155, Dual core 2.7 GHz, 3 M Cache, 35 W, AMT, compatible with CF-1156C-RS CPU cooler
- CPU-DT-i3-2100T - Intel Core i3-2100T processor, LGA1155, Dual core 2.5 GHz, 3 M Cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-P-G620T - Intel Pentium G620T processor, LGA1155, Dual core 2.2 GHz, 3 M Cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-C-G440 - Intel Celeron G440 processor, LGA1155, Single core 1.6 GHz, 1 M Cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CF-1156A-RS - High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W
- CF-1156B-RS - High-performance LGA1155/LGA1156 cooler kit, 95 W
- CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W
- CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W
