Features
- Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Intel® UHD Graphics 770 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance

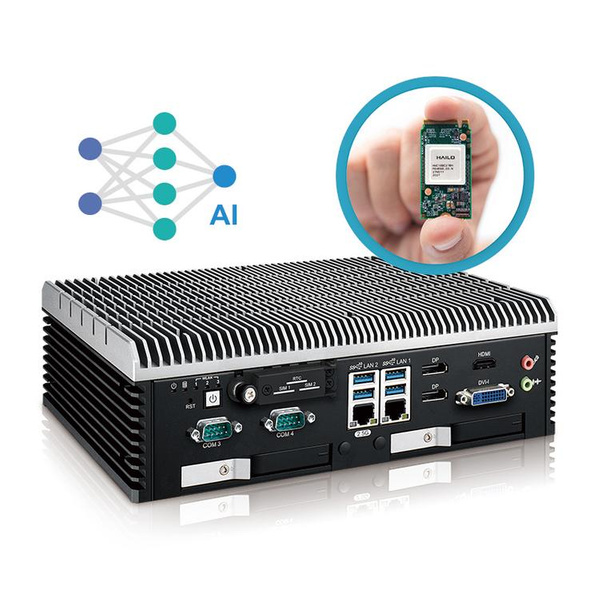

- Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W
- 5 Independent 2.5G LAN with 4 IEEE 802.3at PoE+
- 4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2
- DC 9V to 50V Power Input, Software Ignition Control
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Parametry techniczne:
System | |
| System - Processor: | 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh) ,
24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) ,
16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
| System - Chipset: | Intel® R680E Chipset |
| System - BIOS: | AMI |
| System - SIO: | IT8786E |
| System - Memory: | 2 DDR4 3200MHz SO-DIMM, up to 64GB |
| System - OS: | Windows 11, Windows 10, Linux |
AI Accelerator | |
| AI Accelerator - Processor: | Hailo-8™ AI Processor, up to 26 TOPS |
| AI Accelerator - Framework: | TensorFlow, ONNX |
I/O Interface | |
| I/O Interface - Serial: | Up to 4 COM RS-232/422/485 |
| I/O Interface - USB: | 6 USB 3.2 Gen 2 |
| I/O Interface - Isolated DIO: | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| I/O Interface - LED: | Power, HDD, PoE, Wireless |
| I/O Interface - SIM Card: | 2 External SIM Card Sockets |
| I/O Interface - RTC Battery: | Front-access RTC Battery |
Expansion | |
| Expansion - Mini PCIe: | 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA |
| Expansion - M.2: | - 1 M.2 Key B Socket (3042/3052, SATA/USB 3, USB 2) ,
1 M.2 Key E Socket (2230, PCIe x2/USB) |
| Expansion - SUMIT A, B: | 2 SUMIT Slot (Optional) |
Graphics | |
| Graphics - Graphics Processor: | Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture |
| Graphics - Interface: | 4 independent displays : 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @60Hz ,
1 DVI-I : Up to 1920 x 1080 @60Hz ,
1 HDMI : Up to 1920×1080 @ 60Hz |
Storage | |
| Storage - SATA: | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| Storage - mSATA: | 1 SATA III (Mini PCIe Type, 6Gbps) |
| Storage - Storage Device: | 2 Front-access 2.5" SSD/HDD Tray ,
4 Front-access M.2 Key M SSD Tray (ECX-3000 PoES AI) |
Audio | |
| Audio - Audio Codec: | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio - Audio Interface: | 1 Mic-in, 1 Line-out |
ETHERNET | |
| Ethernet - LAN 1: | Intel® I219LM GigE LAN supports iAMT |
| Ethernet - LAN 2: | Intel® I226 2.5GigE LAN supports TSN |
2.5G PoE | |
| 2.5G PoE - LAN 3: | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| 2.5G PoE - LAN 4: | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| 2.5G PoE - LAN 5: | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| 2.5G PoE - LAN 6: | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
Power | |
| Power - Power Input: | DC 9V to 50V |
| Power - Power Interface: | 3-pin Terminal Block : V+, V-, Frame Ground ,
4-pin Mini-DIN |
| Power - Ignition Control: | 16-mode Software Ignition Control |
| Power - Remote Switch: | 3-pin Terminal Block |
Others | |
| Others - TPM: | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Others - Watchdog Timer: | Reset : 1 to 255 sec./min. per step |
| Others - Smart Mgmt.: | Wake on LAN, PXE supported |
| Others - HW Monitor: | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechaniczny | |
| Mechanical - Dimension: | 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11") |
| Mechanical - Weight: | 3.8 kg (8.38 lb) |
| Mechanical - Mounting: | Wallmount by mounting bracket ,
DIN Rail Mount (Optional) ,
2U Rackmount (Optional) |
Środowisko | |
| Environment - Operating Temperature: | 35W TDP CPU : ,
-40°C to 65°C (-40°F to 149°F), Fanless ,
65W TDP CPU : ,
-40°C to 45°C (-40°F to 113°F), Fanless ,
ECX-3000-PoES AI : -40°C to 45°C (-40°F to 113°F), Fanless |
| Environment - Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Environment - Humidity: | 5% to 95% Humidity, non-condensing |
| Environment - Relative Humidity: | 95% @65°C |
| Environment - Shock: | IEC 60068-2-27 ,
- SSD : 50G @wallmount, Half-sine, 11ms |
| Environment - Vibration: | IEC 60068-2-64 ,
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| Environment - EMC: | CE, FCC, EN50155, EN50121-3-2 |
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
