Name: RAC-1000
Brand: Vecow

Karta katalogowa Pobierz

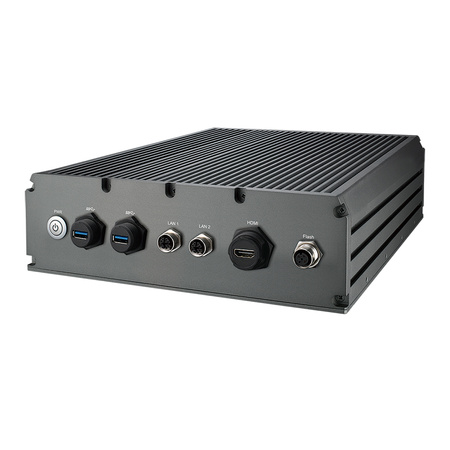

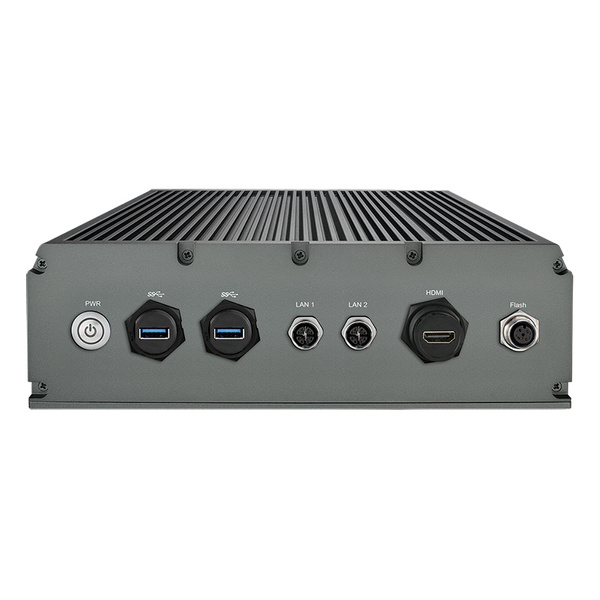

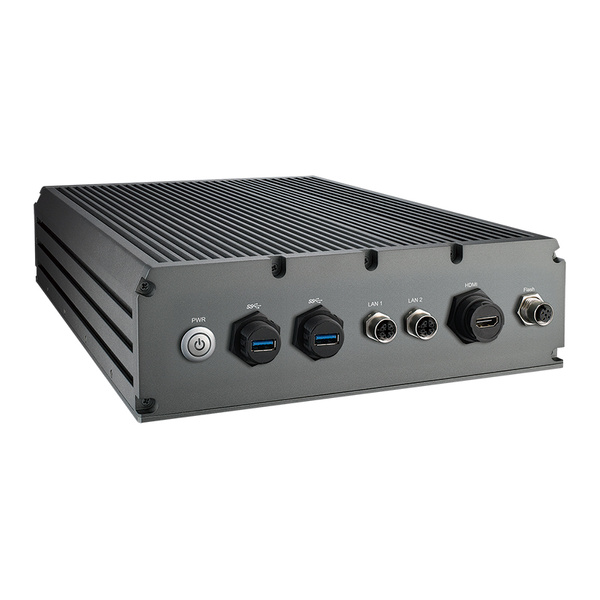

The Vecow RAC-1000 is powered by NVIDIA® Jetson AGX Orin™ platform, featuring 2048 cores NVIDIA Ampere™ architecture GPU with 64 Tensor cores and 12-core Arm® Cortex®-A78AE CPU. The rugged RAC-1000 delivers 275 TOPS of AI performance and includes high-speed interface support for multiple sensors, including 8 GMSL 1/2 automotive cameras with Fakra-Z connectors, 1 M12 Isolated CAN-FD, 2 M12 COM RS-232/422/485. The RAC-1000 features an IP67 protection design, making it ideal for outdoor/harsh environments such as Automated Agricultural Machinery, Outdoor Robots, Construction Automation, and other Edge AI applications.

Cechy

Advanced NVIDIA® Jetson AGX Orin™ platform delivers up to 275 TOPS AI performance
The latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores

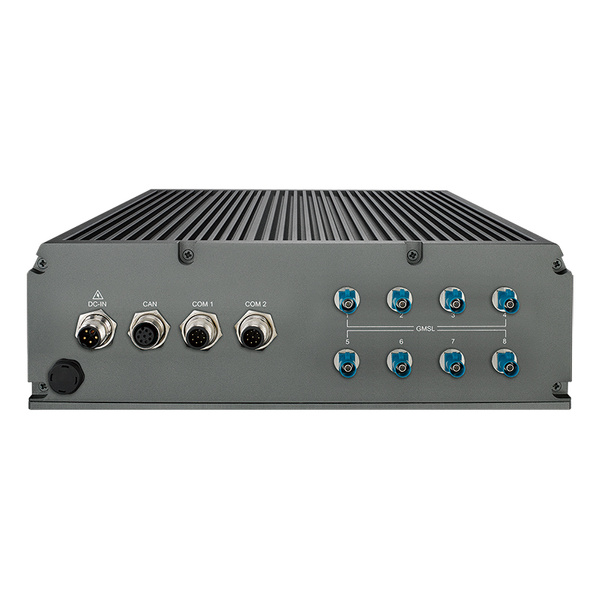

Supports 8 GMSL 1/2 automotive cameras with Fakra-Z connectors
IP67 Anti-dust and Waterproof Chassis design
1 M12 Isolated CAN-FD, 2 M12 COM RS-232/422/485
2 M12 GigE LAN, 2 USB 3.1, 1 Digital Display supports 4K60
DC 9V to 50V wide range power input

Specyfikacja

System
CPU	RAC-1000-R32 : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU RAC-1000-R64 : 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
GPU	RAC-1000-R32 : 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores RAC-1000-R64 : 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor Cores
DL Accelerator	2x NVDLA Engines
Memory	RAC-1000-R32 : 1 32GB LPDDR5 DRAM RAC-1000-R64 : 1 64GB LPDDR5 DRAM
OS	- Linux - NVIDIA JetPack SDK
I/O Interface
USB	2 M12 USB 3.1
Serial	2 A-coded M12 COM RS-232/422/485
LAN	2 X-code M12 GigE LAN
HDMI	1 HDMI 2.1
CAN Bus	1 A-coded M12 Isolated CAN Bus support CAN FD
Flash	1 M12 Micro USB OS flash port
Button	1 Power Button with LED, 1 Recovery button
Expansion
M.2	- 1 M.2 Key B Socket (3042/3052) - 1 M.2 Key E Socket (2230)
Graphics
Interface	1 Digital Display, up to 4K60
Video Encode	- HEVC: 2x 4K @60, 4x 4K @30, 8x 1080p @60, 16x 1080p @30 - H.264: 1x 4K @60, 3 X4k @30, 7x 1080p @60, 14x 1080p @30
Video Decode	- HEVC: Up to 1x 8K @30, 3x 4K @60, 7x 4K @30, 11x 1080p @60, 22x 1080p @30 - H.264: Up to 1x 4K @60, 3x 4K @30, 6x 1080p @60, 13x 1080p @30
Camera
GMSL	8 Fakra-Z connectors for GMSL 1/2 automotive cameras
Storage
M.2	2 M.2 Key M Socket (2280)
eMMC	1 eMMC 5.1, 64GB
Ethernet
LAN 1	10/100/1000 Base-T Ethernet GigE LAN, X-coded M12 Connector
LAN 2	10/100/1000 Base-T Ethernet GigE LAN, X-coded M12 Connector
Power
Power Input	DC 9V to 50V
Power Interface	4-pin K-Code M12 connector
Mechanical
Dimensions	260 mm x 330 mm x 80 mm (10.23" x 13" x 3.14")
Weight	7 kg (15.43 lb)
Mounting	Wallmount
Environment
Operating Temperature	30W TDP Mode : -25°C to 70°C (-13°F to 158°F), with 0.63 m/s air flow 40/50W TDP Mode : -25°C to 55°C (-13°F to 131°F), with 0.63 m/s air flow
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% @ 70°C
Shock	Operating, MIL-STD-810G, Method 516.7, Procedure I
Vibration	Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4
EMC	CE, FCC, EN50155, EN50121-3-2, IP67
