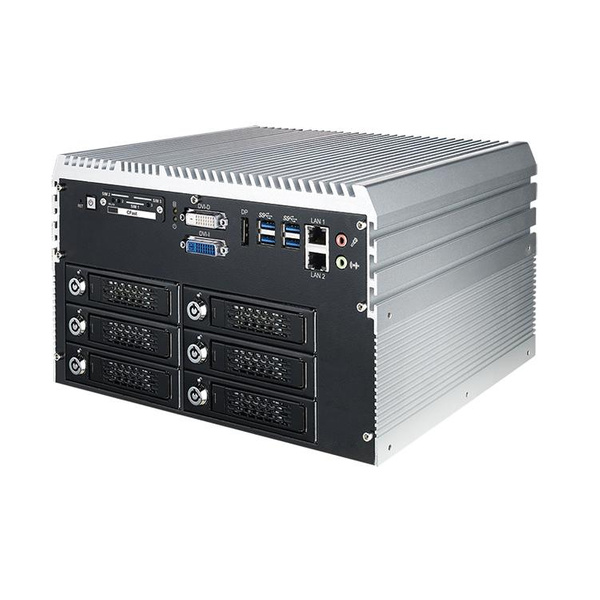

Name: IVH-9204MX ICY
Brand: Vecow

Karta katalogowa Pobierz

Features

LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake/Skylake) with Intel® C236 Chipset
6 Independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+
16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection
6 front-access 7mm to 15mm height SSD/HDD Tray, up to 24TB
2 DDR4 2400MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
Fanless design for railway in-vehicle applications, fully compliant with EN50155
-40°C to 55°C Extended Operating Temperature
32 Isolated DIO, 8 USB 3.0, 4 COM, 2 Mini PCIe, 6 SATA
Triple independent displays : DVI-I, DVI-D and DisplayPort, up to 4K resolution
Configurable Ignition Power Control, UPS supported
3 External SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
EN50155, EN50121-3-2 and EN45545-2 compliant

Feature Highlights

Workstation-grade Performance

Workstation-grade Platform : Quad-core Intel Xeon/Core i7/i5/i3 processor (Kaby Lake/Skylake) + Intel C236 chipset
2 SO-DIMM sockets, up to 64GB DDR4 memory (ECC/Non-ECC)
Intel HD Graphics 630/530, max 4K resolution
High-speed data transfer : PCIe 3.0 (8GT/s), SATA III (6G), USB 3.0 (5G), GigE LAN (1G)

Integrated Operation

Flexible Socket Type CPU
Triple independent displays : DVI-I, DVI-D & DisplayPort, up to 4K Resolution
6 independent GigE LAN with 4 IEEE 802.3at (25.5W/48V) PoE+, Power On/Off Control

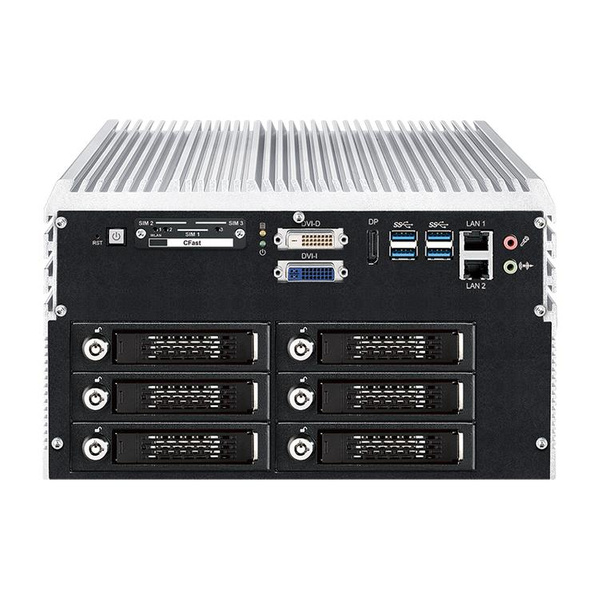

6 Front-access 7mm to 15mm in height SSD/HDD trays, up to 24TB capacity
8 external USB 3.0, 4 external COM RS-232/422/485
3 external SIM sockets, 1 external CFast socket
Smart System Management : iAMT 11.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch

Leading Protection

EN45545-2 Fire Protection
16V to 160V Wide Range DC Power Input with 4kV DC Isolation
500V DC 8/20us Surge Protection
Rugged & Lockable 15mm SSD/HDD trays, RAID 0, 1, 5, 10 Data Protection
Ignition Power Control
Smart Power, Data and Circuit Protection
Optional UPS, 7 minutes system protection

Rugged Reliability

Fanless design, -40°C to 55°C Operation
Fully EN50155 Compliant
Always-on Mobile Wireless : WiFi/4G/3G/LTE/GPRS/UMTS
X-coded M12 connections
Hot swappable SSD/HDD trays
Anti-shock, Anti-vibration
EN50121-3-2 compliant

Parametry techniczne:

System
System - Processor:	Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Kake-S/Skylake-S)
System - Chipset:	Intel® C236
System - BIOS:	AMI
System - SIO:	IT8786E
System - Memory:	2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB (ECC/Non-ECC)

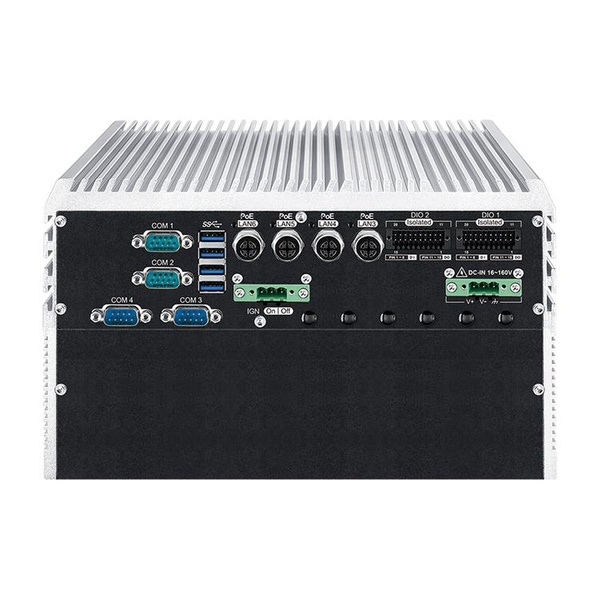

I/O Interface
I/O Interface - Serial:	4 COM RS-232/422/485 (ESD 8KV)
I/O Interface - USB:	8 USB 3.0 (External)
I/O Interface - Isolated DIO:	32 Isolated DIO : 16 DI, 16 DO
I/O Interface - LED:	Power, HDD, Wireless, PoE
I/O Interface - SIM Card:	3 External SIM Card Socket
Expansion
Expansion - Mini PCIe:	2 Full-size Mini PCIe sockets for PCIe/USB/External SIM Card/mSATA
Graphics
Graphics - Graphics Processor:	Intel® HD Graphics 630/530
Graphics - Interface:	Triple Independent displays： , DVI-I : Up to 1920 x1200 @ 60 Hz , DVI-D : Up to 1920 x1200 @ 60Hz , DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
Storage - SATA:	6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
Storage - mSATA:	2 SATA III (Mini PCIe Type, 6Gbps)
Storage - Storage Device:	1 CFast Socket, Push-in/Push-out Ejector , 6 Front-access 2.5" SSD/HDD Tray (15mm in height)
Audio
Audio - Audio Codec:	Realtek ALC888S, 7.1 Channel HD Audio
Audio - Audio Interface:	1 Mic-in, 1 Line-out
ETHERNET
Ethernet - LAN 1:	Intel® I219LM GigE LAN supports iAMT 11.0
Ethernet - LAN 2:	Intel® I210 GigE LAN
PoE (X-coded M12)
PoE (X-coded M12) - LAN 3:	GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
PoE (X-coded M12) - LAN 4:	GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
PoE (X-coded M12) - LAN 5:	GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
PoE (X-coded M12) - LAN 6:	GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
Power
Power - Power Input:	16V to 160V, DC-in
Power - Power Interface:	3-pin Terminal Block : V+, V-, Frame Ground
Power - Ignition Control:	16 Mode (Internal)
Power - Remote Switch:	3-pin Terminal Block：On, Off, IGN
Power - Isolation:	4kV DC
Power - Surge Protection:	0.5kV DC 8/20us Surge
Power - UPS(UPM-100):	Optional supports 3 stackable 18650 LFO Batteries (1.1mA/h)
Others
Others - TPM:	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Others - Watchdog Timer:	Reset : 1 to 255 sec./min. per step
Others - Smart Management:	Wake on LAN, PXE supported
Others - HW Monitor:	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
Software Support - OS:	Windows 10, Windows 8.1, Windows 7, Linux
Mechaniczny
Mechanical - Dimension (W x L x H):	260mm x 215mm x 155mm (10.24”x 8.46”x 6.10”)
Mechanical - Weight:	6.0 kg (13.23 lb)

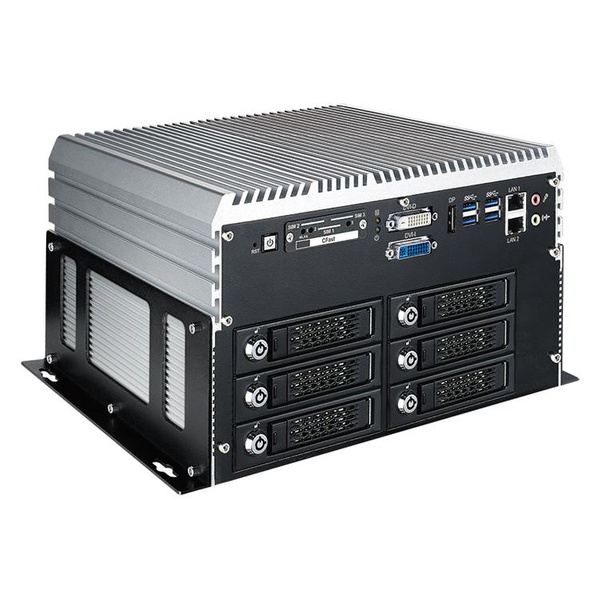

Mechanical - Mounting:	Wallmount by mounting bracket
Środowisko
Environment - Operating Temperature:	IVH-9204MX ICYU/IVH-9204MX ICY4U： , 0°C to 40°C (32°F to 104°F) , IVH-9204MX ICY/IVY-9204MX ICY４： , 35W TDP CPU：-40°C to 55°C (-40°F to 131°F) , 65W/80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Environment - Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Environment - Humidity:	5% to 95% Humidity, non-condensing
Environment - Relative Humidity:	95% at 55°C
Environment - Shock:	IEC 60068-2-27, IEC 61373 , SSD : 50G @ wallmount, Half-sine, 11ms
Environment - Vibration:	IEC 60068-2-64, IEC 61373 , SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Environment - Certification:	CE, FCC, EN50155, EN50121-3-2, EN45545-2
