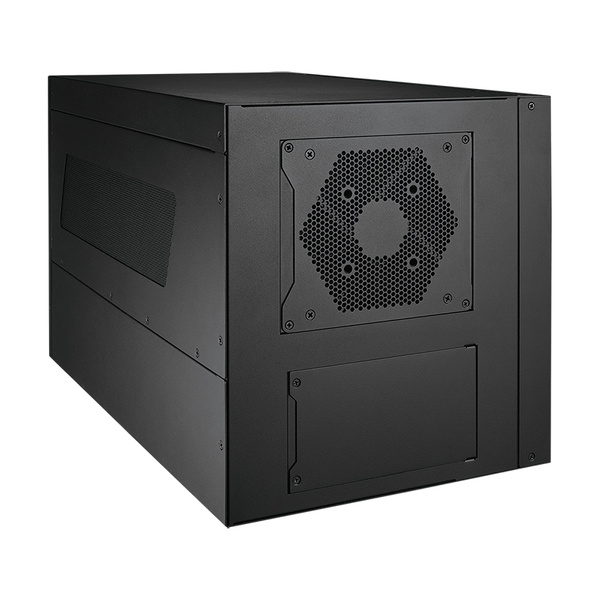

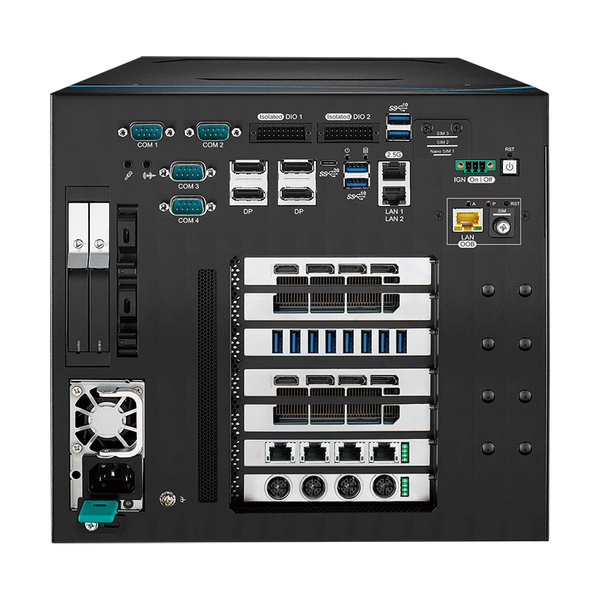

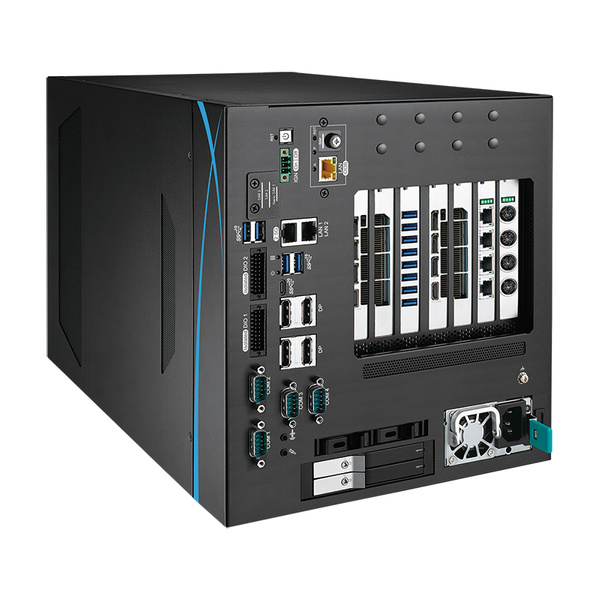

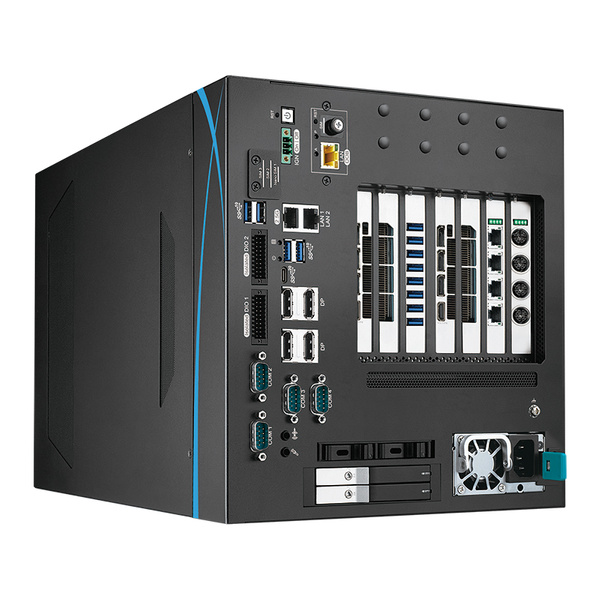

The Vecow RCX-3000 PEG is an Expandable GPU-accelerated System powered by Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) Processor. The RCX-3000 PEG provides scalability with support for up to 7 PCIe expansions, making it capable of supporting a max 1800W power budget for dual 900W NVIDIA or AMD 2-slot full-length graphics card for AI and inferencing. Additionally, the RCX-3000 PEG offers rich I/O, including 2 GigE LAN with TSN, 4 USB 3.2 Gen 2, 4 COM, 32 Isolated DIO, 3 SIM card sockets, 1 Mini PCIe socket and provides 4 SATA for 2.5” SSD/HDD Tray. It also provides 2 front-access M.2 Key M SSD Trays for data storage. For industrial deployments, it features operating temperature range from -25°C to 45°C, and flexible power input options ranging from DC 16V to 50 and AC 90V to 220V.
Cechy
- Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Max 1800W power budget supports dual 900W NVIDIA® or AMD 2-slot full-length graphics card
- Flexible Power Input Design with Software Ignition Control : AC 220V
- Up to 7 Slot PCIe expansions with PCIe 4.0 x8 and PCIe x4 signals
- 2 Front-access M.2 and 2 2.5" SSD Tray, multiple 5G/WiFi/4G/LTE/GPRS/UMTS
- 4 DisplayPort up to 4K resolution, USB 3.2 Gen 2x2 Type C with a max speed of 20Gbps data transfer supported, 2 Independent 2.5G LAN with Intel® TSN
- Support remote devices Out-Of-Band management functions powered by Allxon
Feature Highlights
High-performance AI Inference Platform
- 13th/12th Gen Intel Core i9/i7/i5/i3 processor (codename Raptor Lake-S/Alder Lake-S) running with Intel R680E PCH, max 24-core 65W TDP 5.2GHz CPU supported
- 4 DDR5 Memory, up to 128GB, optional supports ECC
- Supports performance hybrid architecture and advanced AI capabilities for smarter and faster applications
- Intel UHD Graphics 770 supports DirectX 12, OpenGL 4.5, OpenCL 3.0
- Optional delivers outstanding AI computing productivity supporting max 10752 CUDA Cores, 84 RT Cores, and 336 Tensor Cores, delivers 75.6 TFLOPS RT Core performance, and 309.7 TFLOPS Tensor performance
- High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 Gen 2x2 Type-C (20G), USB 3.2 Gen 2 (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)
Advanced Integration
- Fully supports 3-slot, 2-slot, single-slot & full-length discrete graphics card
- Intel Deep Learning Boost for accelerated AI performance
- Intel Turbo Boost Technology 2.0 accelerates processor performance on peak loads
- Supports Intel vPro, TPM 2.0, PXE, Wake on LAN for remote control
- Supports TSN and Intel TCC for real-time control
- Fully supports Intel OpenVINO toolkit for AI Computing
- Optional supports remote device Out-Of-Band management functions powered by Allxon
Flexible Configuration
- Flexible product configuration for project requirements
- Max 7 PCIe expansions : PCIe 4.0 x16, PCIe x8, PCIe x4
- PCIe expansions for multiple 10GigE M12 PoE+ LAN, 10GigE PoE+ LAN, 10GigE LAN, 10G SFP+, 2.5GigE PoE+ LAN, 2.5GigE LAN, 100W PoE++, M12 PoE+ LAN, PoE+ LAN, GigE LAN, LAN Switch, USB, or Discrete Graphics
- Max 1800W power budget optional supports levels of full-length discrete graphics, max 10752 CUDA Core Computing
- Multiple compact M.2 Key B, M.2 Key E, M.2 Key M connections for Storage and Expansion
- Flexible Wide Range Power options : DC 16V to 50 Power Input or AC 90V to 240V Power Input
Industrial Optimization
- EN50155 & EN50121-3-2 compliant
- ICE 61373 : Anti-shock, Anti-vibration
- Dual high-reliable Intel 2.5GigE LAN support TSN
- Trusted longevity supports
- Wide range power input facilitates indoor, outdoor, and even in-vehicle operating environments
- 16-mode SW Ignition Power Control benefits for in-vehicle operation
- 32 Isolated DIO, 4 COM RS-232/422/485
- 3 External SIM sockets supports always-on 5G/WiFi/BT/4G/LTE/GPRS/UMTS Wireless Communication
- Remote Power Switch
Obsługiwane Procesory
Intel® Core™ (14th Gen)*
- i9-14900
- i9-14900T
- i7-14700i7-14700T
- i5-14500
- i5-14500T
- i3-14100
- i3-14100T
Intel® Core™ (13th Gen)
- i9-13900Ei9-13900TE
- i7-13700E
- i7-13700TE
- i5-13500E
- i5-13500TE
- i3-13100E
- i3-13100TE
Intel® Core™ (12th Gen)
- i9-12900Ei9-12900TE
- i7-12700E
- i7-12700TE
- i5-12500E
- i5-12500TE
- i3-12100E
- i3-12100TE
Specyfikacja
| System | |
| Processor |
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
- 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
|
| Chipset | Intel® R680E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 4 DDR5 4800MHz UDIMM, up to 128GB (ECC/Non-ECC) |
| OS | Windows 10/11, Linux |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8kV) |
| USB |
- 4 USB 3.2 Gen 2 Type A
- 1 USB 3.2 Gen 2x2 Type C (5V/3A)
|
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | HDD, Power, OOB |
| SIM Card | 3 External SIM Card Sockets |
| Expansion | |
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/SIM Card |
| PCIe |
- 2 PCIe x16 Slot with PCIe 4.0 x8 Signal
- 3 PCIe x16 Slot with PCIe x4 Signal
|
| M.2 |
- 2 M.2 Key B Socket (2280/3042/3052, PCIe x2/USB3(Default)/USB2)
- 1 M.2 Key E Socket (2230, PCIe x1/USB)
|
| Graphics | |
| Graphics Processor | Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture |
| Interface | 4 Independent displays : 4 DisplayPort, up to 4096 x 2304 @60Hz |
| Storage | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| M.2 | 2 Front-access M.2 Key M SSD Tray (2280, PCIe x4) |
| Storage Device |
- 2 Front-access 2.5" SSD/HDD Tray
- 2 Internal Bracket 2.5" SSD/HDD
|
| Audio | |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I226 2.5GigE LAN supports TSN |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
| Power | |
| Power Input | AC 90V to 240V (2000W @220V for dual discrete graphics card operation) |
| Power Interface | 3-pin C14-type AC Plug |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Out-of-Band Management | |
| MCU | Nuvoton NUC980 |
| Interface | OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector |
| Remote Management | Support Remote Power ON/OFF, Reset and Power Cycling |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 253mm x 269mm x 398mm (9.96"x 10.59"x 15.67") |
| Weight | 10.2 kg (22.5lb) |
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temp. | -25°C to 45°C (-13°F to 113°F) |
| Storage Temp. | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% @45°C |
| Shock/Vibration |
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
