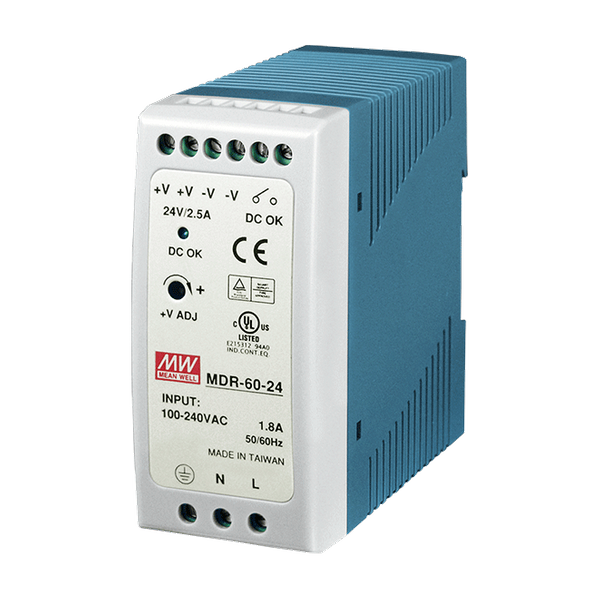

Name: MDR-60-24
Brand: ICP DAS

Parametry techniczne:

Product Range:	Power Supply
Safety
Safety: Standard:	UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant (24V,48V only)
EMC
EMC: Standard:	Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, , EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
Input
Input: Voltage Range:	85 ~ 264 VAC , 120 ~ 370 VDC
Input: Frequency Range:	47 ~ 63 Hz
Input: Inrush Current (Typ.):	COLD START 30 A/115 VAC , 60 A/230 VAC
Input: Leakage Current:	<1 mA / 240 VAC
Output
Output: Ripple & Noise (Max.):	150mVp-p
Output: Voltage Adj. Range:	24 ~ 30 V
Output: Voltage Tolerance:	±1.0%
Output: Line Regulation:	±1.0%
Output: Load Regulation:	±1.0%
Output: Setup, Rise Time:	500 ms, 30 ms/230 VAC , 500 ms, 30 m/115 VAC at full load
Output: DC Voltage:	24 V
Output: Rated Power:	60 W
Output: Rated Current:	2.5 A
Output: Efficiency:	88%
Protection
Protection: Over Voltage:	31.2 ~ 36V , Protection type : Shut down o/p voltage, re-power on to recover
Protection: Overload:	105 ~ 160% rated output power , Protection type : Constant current limiting, recovers automatically after fault condition is removed
Function
Function: DC OK Active Signal (Max.):	30V/1A resistive
Mechaniczny
Mechanical: Casing:	Plastic
Mechanical: Dimensions (mm):	(40 * 90 * 100) mm
Środowisko
Environment: Operating Temperature:	-20 ~ +70 °C
Environment: Storage Temperature:	-40 ~ +85°C
Environment: Humidity:	20 ~ 90% RH Non-condensing
Status:	Available
