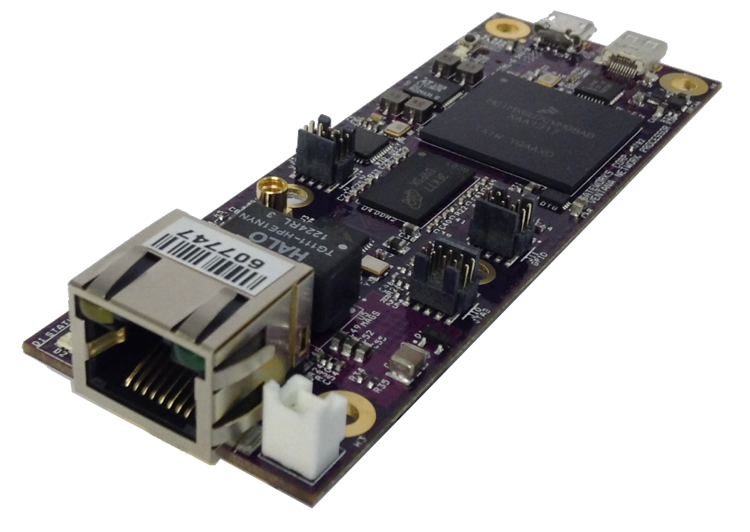

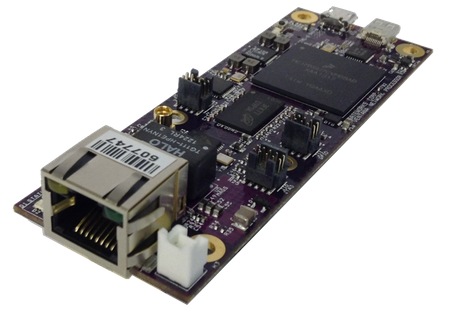

The GW5100 is a member of the Gateworks 5th generation Ventana family of single board computers (SBCs) targeted for a small form factor, low power embedded applications such as Man Portable Units (MPUs), Unmanned Aerial Vehicle (UAV) equipment, digital signage, and robotics. The GW5100 features the Freescale™ i.MX6 Dual Core ARM® Cortex™ -A9 SoC processor operating at 800MHz, 512Mbytes of DDR3-1066 DRAM, and 256Mbytes of System Flash. A Mini-PCIe expansion socket supports 802.11abgn radios, 4G WiMAX radios, 3G CDMA/GSM cellular modems and other PCI Express peripherals. The HDMI and analog video make the GW5100 ideal for wireless video applications. The Gateworks System Controller provides embedded features such as real time clock, voltage and temperature monitor, serial EEPROM, programmable front panel switch, tamper switch and advanced power management with programmable board shut-down and wake-up for remote sensor applications. A wide-range DC input power supply provides up to 8W of power to the Mini-PCIe sockets for supporting the latest high-power radios. Power is applied through a dedicated connector or the Ethernet jack in a passive Power over Ethernet architecture. OpenWrt, Android, and OpenEmbedded Linux board support packages are included.
Features
- Freescale™ i.MX6 800MHz Dual Core ARM® Cortex™ -A9 SoC Processor
- 512Mbyte DDR3-1066 SDRAM Memory
- 256Mbytes Flash System Memory
- High-Power Gen 2.0 Mini-PCIe Socket with USB Support
- GbE Ethernet Port
- USB 2.0 OTG Port up to 480Mbps
- HDMI 1.4 Output Port with Audio Support
- Analog Video Input Channel
- TTL Serial Port
- General Purpose Digital I/O
- Real Time Clock with Battery Backup
- Voltage and Temperature Monitor
- Serial Configuration EEPROM
- Programmable Watchdog Timer
- Optional GPS Receiver
- Optional PCIe Expansion for Additional Mini-PCIe, GbE, or Legacy Mini-PCI
- 8 to 42VDC Input Voltage Range
- Power Through Passive PoE or Dedicated Connector
- 2W Typical Operating Power
- 8W Available for Mini-PCIe Socket
- Reverse Voltage Protection
- -40°C to +85°C Operating Temperature
- OpenWrt, Android, and OpenEmbedded Linux Board Support Packages
- 1 Year Warranty
