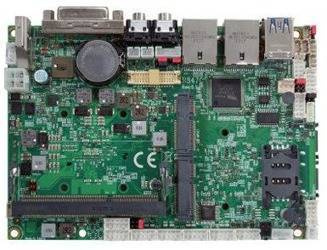

3I847CW-3C4

Komputer jednopłytkowy 3.5" z Intel Celeron 1047UE 1.4 GHz, VGA/LVDS/DVI/HDMI, 2x GbE, 5x RS-232, 1x RS-422/485, 2x USB 3.0, 7x USB 2.0, 1x SATA-3, 1x SATA-2 i HD-audio (-20 ~ +70°C); zasilanie 9 ~36 Vdc

Features

• Embedded Intel Ivy Bridge 1047 UE 1.4 GHz CPU + Intel Pather Point (PCH) HM76
• DDR3 SO-DIMM Socket
• Display: VGA, DVI, HDMI & LVDS
• 2x Intel GbE LAN, 2x USB 3.0, 7x USB 2.0, Line-out, Mic-in, 6x COM
• 2x Mini PCIe, 1x SIM card socket ( option share on board SSD)

Specifications

• Chipset: Intel Panther Point (PCH) HM76
• Memory:
  • Type/Capacity: DDR3 1333/1600 MT/s, Max up to 8 GB
  • SO-DIMM: 1
  • On board Memory: -
• SSD storage:
  • CF (CFast): N/A
  • mSATA: Yes
  • On Board SSD: Optional
• VGA: Yes (Internal)
• LVDS: Single / Dual channel 18/24 bits LVDS
• Touch Screen: USB interface Touch Screen controller
• DVI/HDMI: DVI & HDMI
• Ethernet: 2x Intel GbE
• Audio: Line-out / Mic-in
• Mini-PCIe:
  • Slot 1: PCIe/USB
  • Slot 2: PCIe/mSATA/USB
• SIM Card Holder: 1
• SATA: 2 (1x SATA 2.0 + 1x SATA 3.0)
• USB: 2x USB 3.0 (external), 2x USB 2.0 (external), 5x USB 2.0 (internal)
• Serial IO: 5x RS232 (internal), 1x 422/485 (internal)
• GPIO: 8x DI/8x DO (Internal)
• WDT: Yes
• PS2 KB/MS: Internal
• Power Input: Wide Range DC IN +9 ~ +36 V
  • CPC - Car Power Control (optional)
• Expansion: GPS, IEEE1394,3G/4G, Bluetooth, WI-FI, I/O, Video Card
• Operating Temp.: -20 ~ +70°C
• Chassis:
  • Box PC: TWITTER, TIGER
  • Panel PC: 8.4", 10.4", 12.1", 15",17" (4:3)
  • DIN Rail: MIRO-3

Ordering Information

• 3I847CW-3C4 - 3.5" SBC with dual-core Intel Celeron 1047UE 1.4 GHz CPU and VGA/LVDS/DVI/HDMI, 2x GbE, 5x RS-232, 1x RS-422/485, 2x USB 3.0, 7x USB 2.0, 1x SATA-3, 1x SATA-2 and HD-audio interface (-20 ~ +70°C); 9 ~ 36 V power
