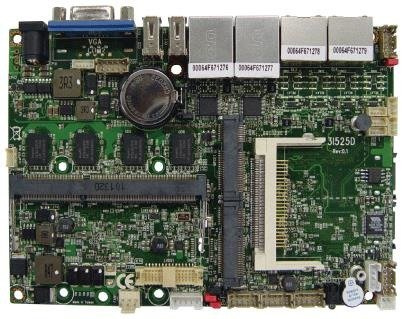

3I525D-V4G-000

Komputer jednopłytkowy 3.5" z Intel Atom D525 1.8 GHz, VGA, 4x GbE, 1x RS-232/485, 7x USB 2.0, 1x SATA i HD-audio (-20 ~ +70°C); zasilanie 12 Vdc

Specifications

• Chipset: Intel Pineview-D + ICH8M
• Memory:
  • Type/Capacity: DDR3 800 MT/s, Max up to 4 GB
  • SO-DIMM: 1
  • On board Memory: N/A
• SSD storage:
  • CF (CFast): CF
  • mSATA: Yes
  • On Board SSD: Optional
• VGA: External
• LVDS: N/A
• Touch Screen: N/A
• DVI/HDMI: N/A
• Ethernet: 4x Realtek GbE
• Audio: Line-out / Mic-in / Line-in Internal (Optional)
• Mini-PCI: 0
• Mini-PCIe:
  • Slot 1: PCIe / USB
  • Slot 2: PCIe / USB / mSATA
• SIM Card Holder: 1
• SATA: 1 (SATA 2 for option)
• USB: 7x USB 2.0 (5x internal + 2x external)
• Serial IO: 1x RS232 optional to RS485, internal
• GPIO: 8DI / 8DO (optional)
• WDT: (optional)
• PS2 KB/MS: N/A
• Power Input: On board DC IN +12 V
• Expansion: GPS, IEEE1394, 3G/4G, Bluetooth, WI-FI, I/O
• Operating Temp.: -20 ~ +70°C
• Chassis:
  Box PC: TWITTER, LEO, BRIK

Ordering Information

• 3I525D-V4G-000 - 3.5" SBC with dual-core Intel Atom D525 1.8 GHz CPU and VGA, 4x GbE, 1x RS-232/485, 7x USB 2.0, 1x SATA and HD-audio interface (-20 ~ +70°C); 12 Vdc power
