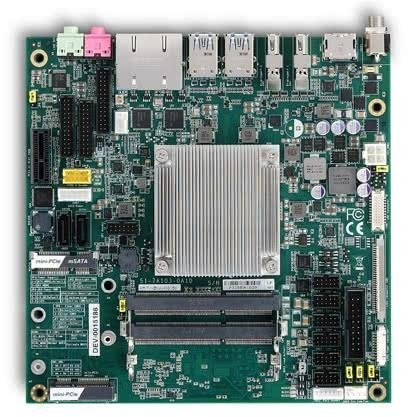

AmITX-BW-I-N3710

Przemysłowa płyta główna Mini-ITX z procesorem quad-core Intel Pentium N3710 1.6 GHz, 1x HDMI/2x DP/1x LVDS, 2x GbE, 4x RS-232, 2x RS-232/422/485, 4x USB 3.0, 5x USB 2.0, 2x SATA-3 i HD-audio (0 ~ +60°C)

Features

• Low-profile Thin Mini-ITX Embedded board
• Intel Pentium Processor N3000 Series
• Up to 8 GB dual channel DDR3L non-ECC at 1600/1333 MHz in stacked SODIMM sockets
• 2x DisplayPort, 1x HDMI, dual channel 18/24-bit LVDS (eDP by build option) supports three independent displays
• Supports Smart Embedded Management Agent (SEMA) functions

Ordering Information

• AmITX-BW-I-N3710 - Mini-ITX Industrial Motherboard with quad-core Intel Pentium N3710 1.6 GHz SoC and 1x HDMI/2x DP/1x LVDS, 2x GbE, 4x RS-232, 2x RS-232/422/485, 4x USB 3.0, 5x USB 2.0, 2x SATA-3 and HD-audio interfaces (0 ~ +60°C)

Optional Accessories

• 30-20876-0000 - COM port cable (1 port, 25 cm)


• 30-20873-0000 - PS/2 KB/MS cable (40 cm)


• 30-20874-1000 - USB 2.0 cable (2 ports, 20 cm)


• 34-25317-1000 - AmITX-BW-I low-profile rear I/O shield


• 32-40343-0000 - AmITX-BW-I CPU heat sink A, low-profile, copper
