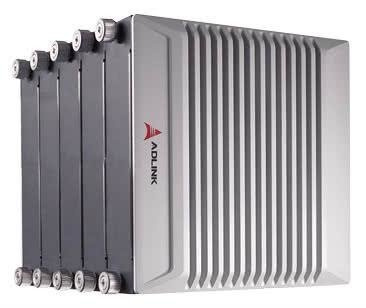

EPS-9905

Obudowa zdalnych modułów EtherCAT z serii EPS-xxxx

Features

• EtherCAT COE, FOE, AOE protocols supported
• Communication quality diagnostic
• Slave module status monitoring
• Wide operation temperature range: -20 ~ +60°C
• Compact size (L x W x H): 130 x 110 x 105 mm
• SMART mechanical design for convenient installation
• IEC-61131 compliant

Specifications

• Operating Temp.: -20 ~ +60 °C
• Installed Slots (max.): 5
• Protection Type: IP31
• Dimension (L x W x H): 130 x 110 x 105 mm
• Weight (estimated): < 1,000 gram
• Extension: EtherCAT
• Power Consumption: 6.6 W
• Supply voltage: 24 Vdc (±10%)
• Environment Certificate:
  • Vibration: 5 Grms, 5 ~ 500 Hz
  • Shock: 50 G, Half Sine 11 ms duration
  • EMC: EN 55011 class A

Ordering Information

• EPS-9905 - Chassis of remote slave module EPS-xxxx series

Optional Accessories

• EPS-6000 - EtherCAT Bus Coupler
