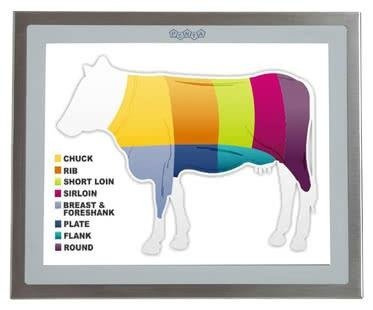

Food-D15

Bezwentylatorowy komputer panelowy IP69k 15" 1024x768 z Intel Atom D2550 1.86 GHz, rezystancyjnym ekranem dotykowym, VGA, 2x GbE, 5x RS-232, 1x RS-232/422/485, 8x USB 2.0, 1x SATA i audio (0 ~ +50°C); obudowa ze stali nierdzewnej

---

Features

• Modular high-end Industrial-PC with complete closed housing (IP69k)
• Durable and error-free even under critical environmental conditions
• Fast data input via Touchscreen
• Various input - and reader devices (Legic, RFID etc.) and Scanner are connectable
• Wireless-LAN integrable
• Passive cooling concept without ventilation-slot and without fan
• Stainless Steel -housing with especially surface, protected all around
• Industrial suited mounting- and fastening concept with mounting bracket
• Cablecover with industrial grade cabel feedthrough (IP69k)

Special features

• The stainless steel housing (IP69k) is made to meet requirements
  for the chemical and food industries as well as the high hygienic sensitive
  production areas of eg. pharmaceutical industry

Specifications

• System


• CPU: dual-core Intel Atom D2550 1.86 GHz
• Cache: 1024 kB L2
• Chipset: NM10PHC
• RAM: Up to 4 GB DDR3
• Graphic controller: Intel GMA
• Video memory: Up to 224 MB (DVMT)
• Storage Media: 24 x 7 HDD or industrial grade CF-Card
• Display size: 15"

• Display resolution: 1024x768
• Weight: 8.6 kg


• Interfaces


• Touch: analog resistive with extended transparency (> 80%),
  surface hard coated against abrasion
• USB: 4x USB2.0 and 4x USB internal
• Power supply: 110/240 Vac 50/60 Hz wide input range or 24 Vdc (internal; optional)
• Ethernet: 2x 1 GB/s
• Serial Ports: 5 x serial RS232 (2 intern); 1 x RS232/422/485
• Parallel Port: LPT (intern; optional for extern use)
• Digital I/O: 8-bit digital I/O ; 4 bit in- / Output (intern; optional for extern use)
• Audio: 1x Mic-In, 1x Line-out
• VGA: 1x connector for external Monitor


• Operating Systems


• Windows: Windows 7, Windows XP, XP embedded
• Linux: Linux, Embedded Linux (on request; customized)


• Environment conditions


• Operating Temperature: 0 ~ +50°C
• Storage Temperature: -10 ~ +60°C


• Certificates


• CE Certificate of Conformity
• Environment EMC-Directive: 89/336/EEC
  EN 55022/5.1995 class A, EN 50082-2/3.1995, VCCI class A, CISPR 22 class A,
  47 CFR Part 15 Subpart B (FCC), AS/NZS 3548 class A, EN 60950, RoHS compliant,
  ISO 9001 (2008), ISO 13485 (2007), WEEE-Reg.-Nr. DE 70246803

Ordering Information

• Food-D15 - Fanless panel PC IP69k 15" 1024x768 with dual-core Intel Atom D2550 1.86 GHz CPU, resistive touch screen and VGA, 2x GbE, 5x RS-232, 1x RS-232/422/485, 8x USB 2.0, 1x SATA and audio interface (-0 ~ +50°C); stainless steel housing

Optional Accessories

• Mountings for wall, ceiling etc.


• Wireless LAN components


• Scanner and reader


• Stainless Steal keyboards (IP65)
